HVLS Fans
HVLS Fan Manufacturers
Epic Fans
Super Duty Fans
Schwank
Soler & Palau
Featured HVLS Fans

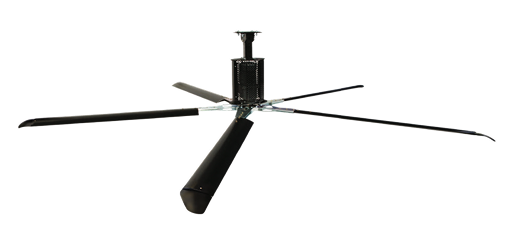

Epic Colossus
When it comes to robust industrial fan design, The Colossus fan from EPIC Fans’ is one of the best. Designed for large areas, this HVLS commercial fan has a reach of up to 24 feet, promoting consistent and adequate air circulation throughout your premises. The Colossus is equipped with reverse circulation capability, making it versatile for both cooling and heating needs, adapting seamlessly to various environmental requirements.
Features
Enjoy a peaceful workspace with its quiet operation, producing a noise level under 55 dBA.
Control Options
Ease of use and adaptability, coming standard with a wired touchscreen controller and further options for network control.
AMCA CFM Tested
AMCA CFM tested to ensure efficient and dependable performance. Detailed CFM data is available in the product’s specification sheet.
Customizable Options
Customize its look to fit your space with options like standard black anodized blades or alternative clear anodized ones. The customization also extends to the frame and motor cover, allowing for customization of each component.
Digital Controls
Featuring the sophisticated iFan network control system from EPIC Fans, the Colossus integrates advanced digital controls to connect with multiple fans and compatibility with existing Building Management Systems (BMS).
Specifications
Blades: 5
HP: 1.5 to 2.0
Disconnect Included: Yes
Line Reactor Included: Yes
Voltage Options: 208-240V/1Ø, 208-240V/3Ø, 460-480V/3Ø
Warranty
Electrical Warranty: 7-year
Labor Warranty: 1-year
Documents
Electrical Warranty: 7-year
Labor Warranty: 1-year

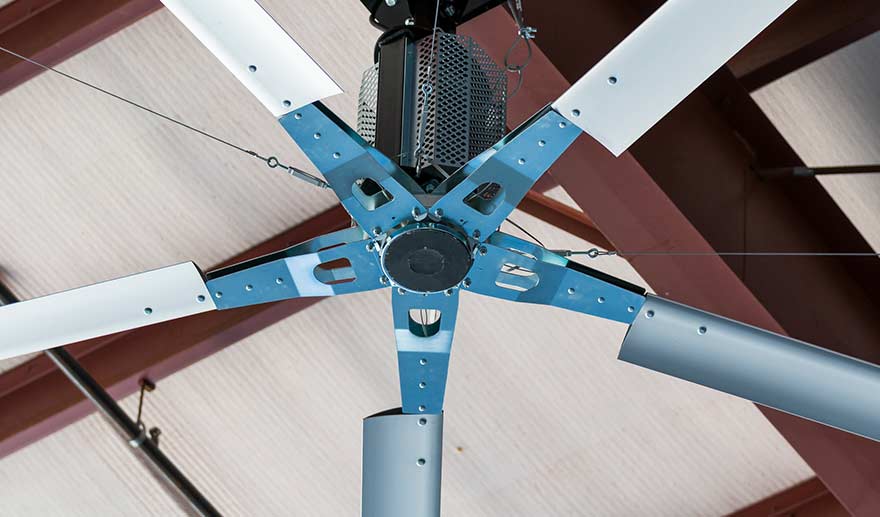

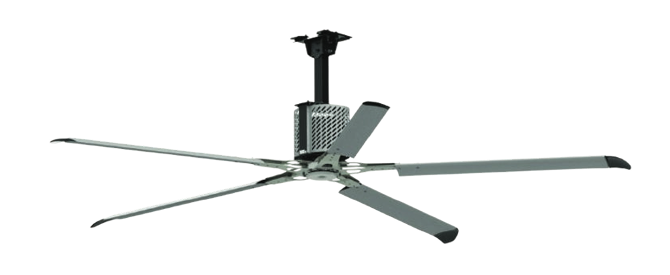

Epic Summit
Transform your sizeable industrial environment with the Summit Fan from EPIC Fans. This fan is expertly crafted to circulate air in substantial volumes, increasing comfort and productivity in sizable spaces such as large warehouses or event venues. The Summit Fan offers an exceptional combination of powerful air movement, elegant design, and energy-saving performance.
Features
The Summit fan operates at an impressively low sound level, under 45 dBA, though this may vary with installation conditions and the surrounding environment.
Control Options
Comes standard with wired touchscreen control, with additional possibilities for network control integration.
AMCA CFM Tested
EPIC Fans are AMCA CFM tested to ensure efficient and dependable performance. Detailed airflow metrics are available in the product’s specification sheet.
Customizable Options
Options include standard black anodized blades or a clear anodized alternative.
Wide Size Selection
Offered in sizes ranging from 8 to 24 feet in diameter, meeting various spatial needs.
Additional Features and Accessories
Mounting Extension
NEMA 4X VFD Enclosure
NEMA 4X Remote Enclosure
Corrosion Resistant Package (Consult Factory)
Multi Fan Remote (2-6)
BAS IntegrationSlave
Remote
Digital Controls
The Summit fans are equipped with the EPIC Fans iFan control system, enabling smooth integration into existing Building Management Systems and networking with other Summit units.
Specifications
Blades: 5
HP: 1.07 to 1.61 Equivalent
Disconnect Included: Yes
Line Reactor Included: Yes
Voltage Options: 120V/1Ø (8’ to 14’ Only), 208-240V/1Ø, 208-240V/3Ø, 460-480V/3Ø
Warranty
Electrical Warranty: 7-year
Labor Warranty: 1-year
Documents
Electrical Warranty: 7-year
Labor Warranty: 1-year
Epic Brevis
Elevate your workspace with the Brevis Fan from EPIC Fans, a prime choice for effective air circulation in large areas. Suitable for settings like shops and warehouses, the Brevis is offered in diameters sized 8’-24’, catering to a wide range of space dimensions. This industrial fan is engineered to provide a blend of robust performance, quiet functionality, and adaptable design, making it a great candidate for large spaces needing efficient ventilation and energy conservation.
Features
The Brevis fan operates at a sound level under 55 dBA, though this may vary depending on the specific installation environment and conditions.
Enhanced NEMA 4X VFD
AMCA CFM Tested
EPIC fans are AMCA CFM tested for assured performance. Refer to the product spec sheet for detailed CFM statistics.
Structural Options
Options available include a mounting extension, an extra-wide beam plate, brackets for laminated wood beams, truss span, and Z-Purlin mounting kits, available upon request.
Multiple Voltage Options
Offered in a range from 110 V single phase to 575 V three-phase, accommodating various electrical needs.
Advanced Control Panel
Operate your Brevis 3-Blade industrial fan with a high-quality VFD panel, providing complete control over its operation.
Additional Features and Accessories
Mounting Extension
NEMA 4X VFD Enclosure
NEMA 4X Remote Enclosure
Corrosion Resistant Package (Consult Factory)
Multi Fan Remote (2-6)
BAS IntegrationSlave
Remote
Specifications
Blades: 3
HP: 1.0
Disconnect Included: Yes
Line Reactor Included: Yes
Voltage Options: 120V/1Ø, 208-240V/1Ø, 208-240V/3Ø, 460-480V/3Ø
Warranty
Electrical Warranty: 5-year
Labor Warranty: 1-year
Documents
Electrical Warranty: 5-year
Labor Warranty: 1-year
Epic Apex
The Apex 3-Blade fan is a top selection for large commercial environments, offering a perfect blend of advanced design and outstanding functionality. With a diameter spanning from 6 to 14 feet, the Apex is designed to provide optimal airflow, characterized by both its substantial volume and its quiet operation. This balance of comprehensive coverage and soft air distribution makes it ideal for large areas in need of effective and considerable air movement.
Features
Featuring ultra-quiet performance, the Apex fan ensures a peaceful atmosphere with noise levels below 35 dBA. However, it’s important to note that these sound levels might vary slightly based on installation location and environmental conditions.
Control Options
The fan includes various control options for added convenience, such as a standard wired touchscreen and additional alternatives for network control, facilitating easy integration into diverse systems.
AMCA CFM Tested
EPIC fans are AMCA CFM tested for assured performance. Please refer to the product spec sheet for detailed CFM statistics.
Various Color Options
Offering a choice of seven standard colors and a broader palette upon request, the Apex fan can be customized to either make a bold statement or to seamlessly integrate with the design of your space.
Customizable Options
The Apex fan provides extensive customization options, allowing you to personalize everything from the blades and winglets to the mounts and housing, ensuring each component aligns with your specific style and requirements.
Advanced Digital Controls
Equipped with standard and iFan-enabled network control panels, featuring a user-friendly touchscreen interface for effortless operation.
Specifications
Blades: 5
HP: 0.58
Disconnect Included: No
Line Reactor Included: No
Voltage Options: 120V/1Ø, 208-240V/1Ø, 208-240V/3Ø
Warranty
Electrical Warranty: 5-year
Labor Warranty: 1-year
Documents
Electrical Warranty: 5-year
Labor Warranty: 1-year
Get a Quote
Adding new fans? Planning new construction?
Contact us today for a free site visit.
