Unit Heaters: Electric Unit Heaters
Electric Unit Heater Manufacturers
Modine
Ouellet
Featured Unit Heaters: Electric Unit Heaters
Modine - Amp Dawg Electric Heater
The Modine Amp Dawg Electric Heater is a premium, low-profile heating solution designed for residential and light commercial spaces such as garages, workshops, and basements. It offers efficient and reliable warmth with minimal maintenance.
Features
Low-Profile Design
Maximizes overhead space, making it ideal for areas with limited headroom.
Cool-To-The-Touch Exterior
The casing remains cool during operation, enhancing safety.
Permanent Installation
Designed for fixed installation, providing a stable and secure heating solution.
Integrated 24V Circuit
Includes a 24V circuit to accommodate external low-voltage thermostats for precise temperature control.
Indicator Lights
Equipped with operating and safety indicator lights for easy monitoring of heater status.
Quiet Operation
Operates silently without vibration, ensuring minimal disruption in your space.
Effective Heat Distribution
Delivers a heat throw of up to 20 feet at low stage, ensuring even heating throughout the area.
Rapid Heating
Quickly warms up the space, providing immediate comfort when needed.
Electric Heating Benefits
Eliminates the need for venting and produces no fumes, offering a clean and convenient heating solution.
Specifications
Available Models
– AMP057: 5.7kW heating capacity
– AMP090: 9.0kW heating capacity
Electrical Requirements
– AMP057: 240V/1Ph
– AMP090: 240V/1Ph or 208V/1Ph
Airflow
Provides 425 CFM at low stage, ensuring adequate air circulation for effective heating.
Temperature Rise
Offers a temperature rise of up to 42°F, efficiently warming your space.
Dimensions
– AMP057: 27″ W x 11.4″ H x 15″ D
– AMP090: 27″ W x 11.4″ H x 15″ D
Weight
– AMP057: 52 lbs
– AMP090: 52 lbs
Warranty
Documents

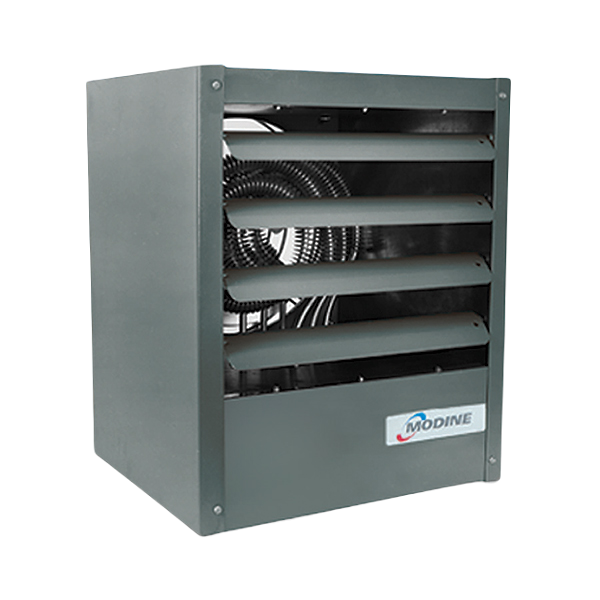

Modine - Horizontal Electric Heater (HER)
The HER series electric unit heaters provide perimeter heating for low-ceiling spaces (e.g., greenhouses), featuring adjustable deflector blades to direct warm air along walls where heat loss is greatest. Models range from 3-25 kW (10,200-85,400 BTU/hr) with thermally protected motors :cite[2]:cite[4]:cite[10].
Features
Directional Control
Adjustable horizontal deflector blades customize heat throw (12-25 ft) :cite[4].
Safety Systems
Automatic reset overheat control and nickel-chromium heating elements resist thermal shock :cite[10].
Easy Maintenance
Hinged bottom panel and exposed fan/motor assembly simplify servicing :cite[2].
Specifications
Performance
10kW model delivers 34,100 BTU/hr at 830 CFM (20 ft throw) :cite[10].
Electrical
240V/1-phase (41.67A) to 480V/3-phase options :cite[10].
Warranty
2-year parts warranty on standard models :cite[10].
Warranty
Documents

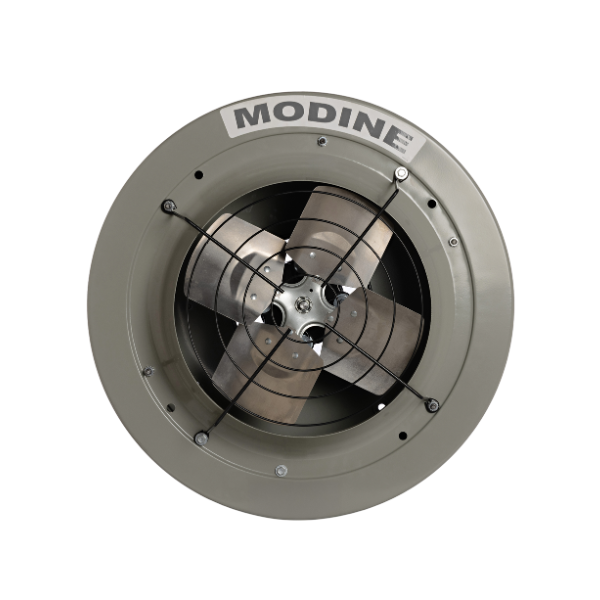

Modine - Vertical Electric Heater (VE)
The VE-Series vertical electric unit heaters offer clean, efficient heating for spaces where hydronic systems aren't practical, featuring multiple heating stages and quiet operation.
Features
Multi-Stage Control
2-4 stage heating elements for gradual temperature adjustment.
Safety Features
Automatic reset thermal cutoffs and motor overload protection.
Specifications
Wattage
3kW-30kW models (208V/240V/480V).
Mounting
Wall-mounted with 360° adjustable louvers.
Warranty
Documents

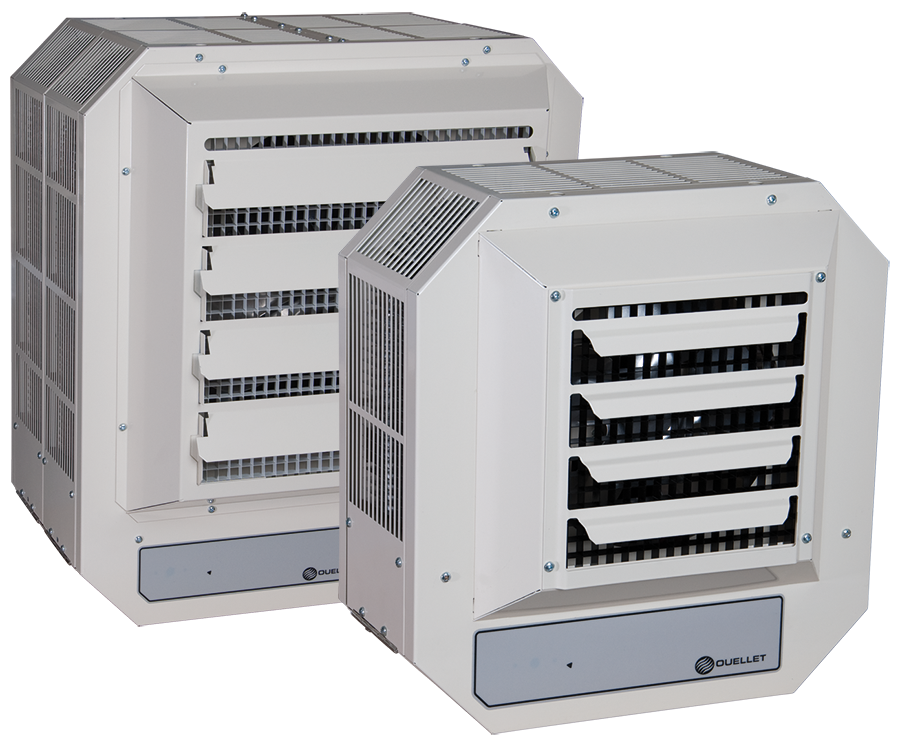

Ouellet - Commercial Unit Heater
The OCU series represents Ouellet's heavy-duty solution for commercial spaces, combining robust construction with versatile heating options for warehouses, garages, and industrial facilities.
Features
Dual-Fuel Capability
Available in electric (3-30kW) or hot water (10,000-150,000 BTU/hr) configurations.
Durable Construction
16-gauge powder-coated steel housing with copper/aluminum fin-tube heat exchangers.
Installation Flexibility
Horizontal or vertical airflow with 360° adjustable discharge louvers.
Specifications
Airflow
500-4,000 CFM via centrifugal blowers (3-speed options).
Certifications
UL/cUL, CSA, and ETL listed for commercial use.
Warranty
5-year heat exchanger, 2-year component coverage.
Warranty
Documents
