Radiant Heaters: High-Intensity Heaters
High-Intensity Radiant Heater Manufacturers
Modine
Schwank
Featured Radiant Heaters: High-Intensity Heaters

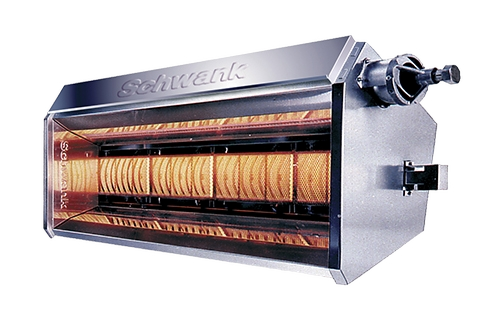

Schwank - supraSchwank
The Schwank supraSchwank is an advanced high-intensity infrared heater designed for industrial and commercial spaces with high ceilings, such as warehouses, aircraft hangars, and sports facilities. It offers exceptional radiant efficiency and energy savings, providing uniform and comfortable heat distribution.
Features
High Radiant Efficiency
Achieves up to 81% radiant efficiency, delivering more heat to the occupied space and reducing energy consumption.
Patented Delta Mixing Chamber
Preheats the gas-air mixture for uniform and efficient heat delivery, enhancing comfort levels.
Feran-Insulated Construction
Minimizes convection heat losses, ensuring that more heat is directed towards the intended area.
Environmental Benefits
Reduces fuel costs and CO2 emissions by up to 65%, contributing to a greener environment.
BMS Integration
Offers flexibility to integrate with Building Management Systems for centralized control and monitoring.
Installation Versatility
Suitable for mounting heights ranging from 15 feet to 180 feet, accommodating various building structures.
Optional Accessories
Compatible with accessories such as ThermoControl Plus, TruTemp, Lion Chain, and safety snap hooks for enhanced functionality and ease of installation.
Specifications
Models and Capacities
Available in five models with input capacities of 29,500 BTU/hr, 44,000 BTU/hr, 59,000 BTU/hr, 88,500 BTU/hr, and 118,000 BTU/hr.
Fuel Type
Compatible with both Natural Gas (NG) and Propane (LP), providing flexibility based on fuel availability.
Minimum Mounting Heights
Ranges from 15 feet for the 29,500 BTU/hr model to 34 feet for the 118,000 BTU/hr model, ensuring optimal performance at various heights.
Certifications
UL and CSA certified, meeting stringent safety and performance standards.
Warranty
Documents

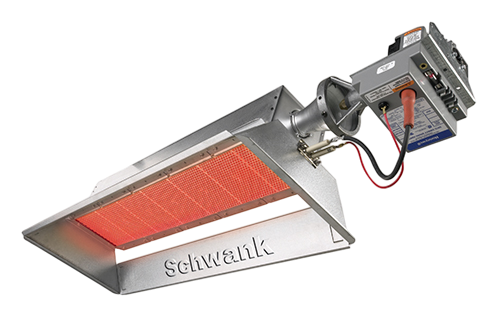

Schwank - ecoSchwank
High-intensity infrared heaters designed for commercial/industrial spaces requiring rapid heat-up (2 minutes to full operation). The ecoSchwank series features patented ceramic burners with 52% radiant energy conversion and 35% CO2 reduction.
Features
Rapid Operation
Reaches full capacity in 2 minutes for on-demand heating :cite[3].
Green Technology
35% lower CO2 emissions and 50% fuel cost savings versus conventional heaters :cite[3]:cite[5].
Model Range
5 models (21,500–100,000 BTU/hr) with 12–70 ft mounting heights
Specifications
Performance
52% radiant energy conversion rate (laboratory tested) :cite[3].
Controls
Compatible with building management systems
Warranty
Documents

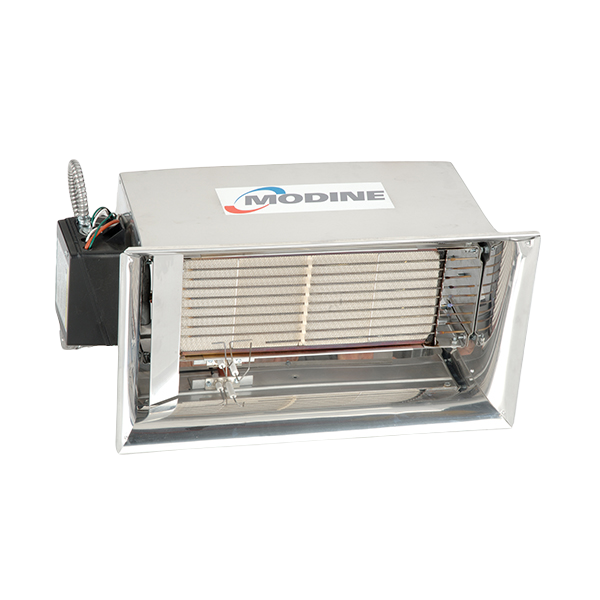

Modine - High-Intensity Infrared Heater
Modine's high-intensity infrared heaters deliver instant, focused heat for commercial and industrial spaces. The HD (standard) and HDS (separated combustion) models feature rugged construction and precise temperature control.
Features
Instant Heat
Reaches full output in under 60 seconds.
Durable Components
304 stainless steel reflectors and aluminized steel cabinets.
Safety Features
Tip-over switch and overheat protection.
Specifications
Input Range
30,000-125,000 BTU/hr.
Mounting
Ceiling or wall mount options.
Venting
Standard power vent or optional separated combustion.
Warranty
Documents

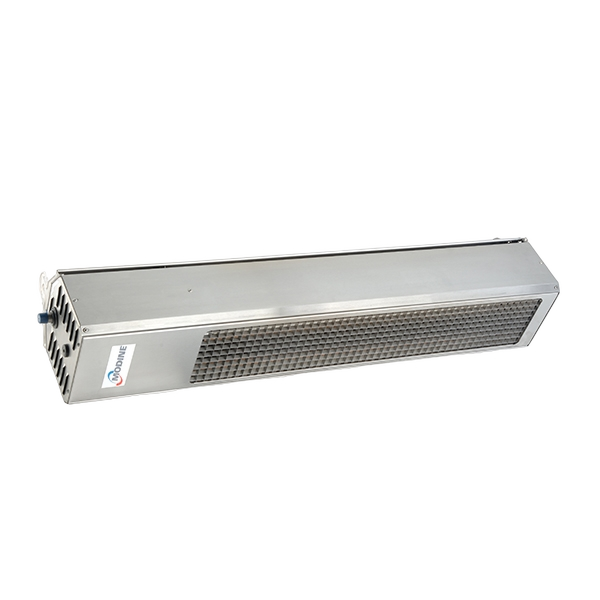

Modine - High-Intensity Patio Heater
Modine's infrared patio heater delivers targeted warmth through energy-efficient radiant technology, designed to extend outdoor seasons for both residential and commercial spaces.
Features
Instant Heat
Brushed stainless steel housing provides immediate warmth without preheating.
Quiet Operation
Fan-free design eliminates noise while maintaining efficiency.
Weather Resistance
ETL certified to ANSI Z83.26 for outdoor durability.
Specifications
Capacity
31,000-34,000 BTU/hr inputs (natural gas/propane).
Ignition
Direct spark or standing pilot options.
Design
Made in USA with externally-mounted service components.
Warranty
Documents
