Radiant Heaters: Electric Radiant Heaters
Electric Radiant Heater Manufacturers
Modine
Ouellet
Schwank
Featured Radiant Heaters: Electric Radiant Heaters

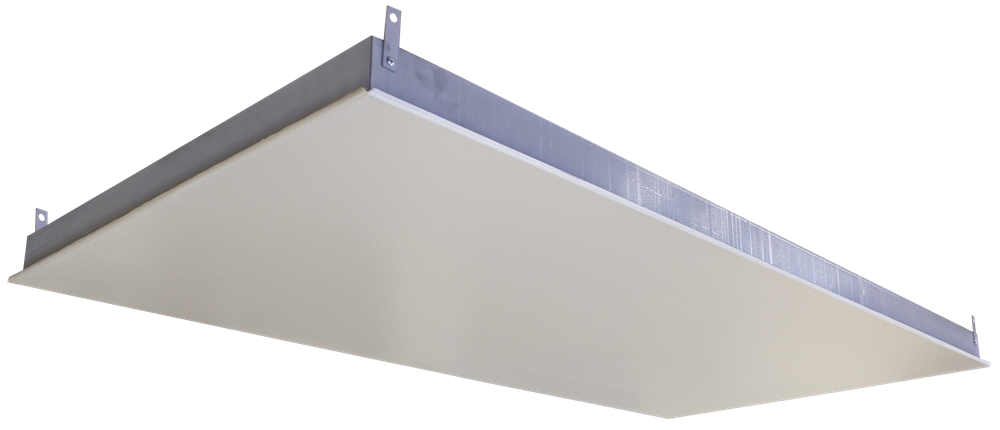

Ouellet - Architectural Radiant Panel
Ouellet's Architectural Radiant Panels are designed to provide clean, economical, and enveloping warmth in commercial and residential settings. These panels are easily integrated into T-Bar suspended ceilings and are available in various sizes and wattages to suit diverse heating needs.
Features
Efficient Heating
Utilizes nickel-chrome alloy resistance wire with PTFE insulation, delivering 65 to 95W per square foot at rated voltage for effective warmth.
Durable Construction
Constructed with a 22-gauge galvanized steel panel frame and front, ensuring longevity and resistance to wear.
Flexible Installation
Designed for suspension from ceilings or integration into T-Bar suspended ceilings; optional frames available for surface or recessed installation on gypsum ceilings.
Integrated Junction Box
Equipped with an internal junction box with cover; optional external junction box available for convenient electrical connections.
Variety of Sizes and Wattages
Available in multiple sizes (23-3/4″ x 23-3/4″, 23-3/4″ x 47-3/4″, 13-3/4″ x 47-3/4″, and 13-3/4″ x 59-3/4″) with wattages ranging from 250W to 750W, accommodating various heating requirements.
Specifications
Voltage Options
Available in 120V, 208V, 240V, 277V, and 347V to suit different electrical systems.
Insulation
Features high-temperature mineral wool insulation (4 PSF density, 2″ thick) for effective heat retention and safety.
Color and Finish
Standard color is polar white (PW); optional black Therma Ray PB-0218-HT (-SP) is available at an additional cost. Finished with high-temperature polyester powder paint for durability.
Controls
Compatible with line voltage control circuits, including thermostats, timers, or switches (sold separately). Electronic wall thermostats are recommended for optimal comfort.
Certifications
Certified under CSA STD C22.2 No.46, ensuring compliance with Canadian safety standards.
Warranty
Comes with a 1-year warranty on paint and a 10-year warranty on the heating element, reflecting Ouellet’s commitment to quality and reliability.
Warranty
Documents

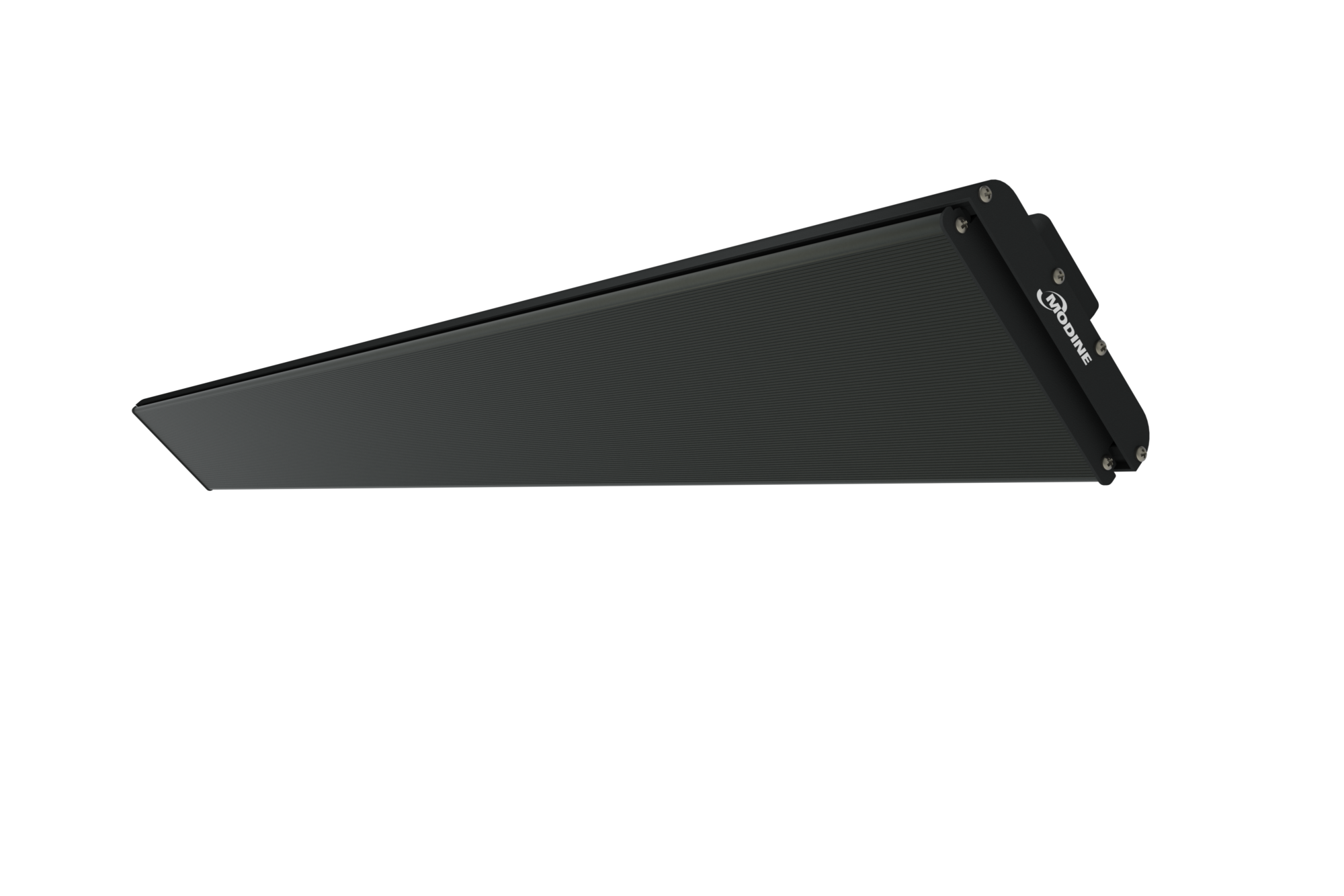

Modine - MES Electric Infrared Heater
While not detailed in the search results, Modine's MES series typically offers electric infrared heating for commercial spaces with features like multi-stage controls and durable enclosures.
Features
Specifications
Warranty
Documents

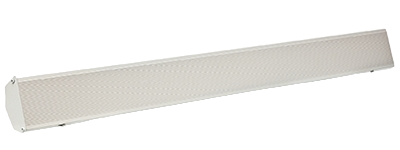

Ouellet - Radiant Cove Heater
The ORC-Series combines the comfort of radiant heat with discreet ceiling cove installation, featuring an aluminum reflector that directs warmth downward while maintaining a low 4.5" profile for architectural integration.
Features
Space-Saving Design
4.5″ deep housing fits standard ceiling coves.
Quiet Operation
Natural convection system operates silently.
Custom Finishes
Optional powder-coated colors to match décor.
Specifications
Heating Capacity
500-2,500W electric models available.
Lengths
4-12 foot continuous runs.
Installation
Hardwired with junction box access.
Warranty
Documents
Features
Specifications
Warranty
Documents
