Make-Up Air Systems: Indirect-Fired Outdoor
Indirect-Fired Outdoor Make-Up Air System Manufacturers
Modine
Featured Make-Up Air Systems: Indirect-Fired Outdoor

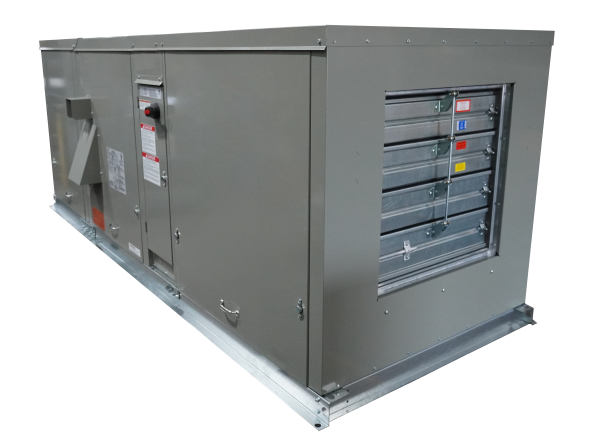

Modine - Indirect-Fired Outdoor Make-Up Air
Modine's Indirect-Fired Outdoor Make-Up Air Systems are engineered to deliver superior heating and ventilation performance for commercial and industrial applications. These systems provide tempered make-up air, enhancing indoor air quality and comfort while ensuring energy efficiency.
Features
Model Variability
Available in 17 sizes with input capacities ranging from 75,000 to 1,200,000 Btu/Hr, catering to diverse heating requirements.
Airflow Capacity
Airflow ranges from 556 to 14,500 CFM, accommodating various ventilation needs.
Fuel Options
Compatible with natural or propane gas, providing flexibility based on fuel availability.
Thermal Efficiency
All units maintain a minimum thermal efficiency of 81%, ensuring effective energy use.
Temperature Range
Designed to operate within an air-temperature range of 20°F to 100°F, suitable for various climatic conditions.
Durable Construction
Constructed with 18-gauge, polyester-powder-painted aluminized steel casing, offering superior corrosion resistance and extended equipment life.
Blower Performance
Blower and motor vibration isolation, with performance up to 3.0” W.C., ideal for longer ductwork or accessories with high-pressure drops.
Installation Convenience
Features separate line and low-voltage terminal strips with job-specific wiring diagrams for quick and accurate field connections.
Certifications
ETL certified, ensuring compliance with recognized safety and performance standards.
Specifications
Enhanced Durability
Optional 409 stainless steel heat exchanger, burner, and drip pan for improved resistance to corrosive environments.
Advanced Controls
Two-stage and electronic modulation controls, with the Modine Control System offering programmable microprocessor capabilities and building management compatibility.
Safety Features
High and low gas pressure switches, ultra-low leak class-I leakage resistance outside air dampers, and various damper actuator options to maximize control of ventilation air.
Variable Air Volume
Variable frequency drives available for flexible air volume control, adapting to varying heating and ventilation demands.
Cooling Options
Factory-installed DX or chilled water coils for integrated cooling solutions when required.
Electrical Components
Optional dead-front disconnect switches and circuit analyzers to minimize start-up and service time by identifying causes of improper unit operation.
Additional Accessories
Smoke detectors, timed freeze protection, thermostats, time clocks, and other control devices available to customize the system to specific needs.
