Linear/Slot Diffusers
Linear/Slot Diffuser Manufacturers
Tuttle & Bailey
Featured Linear/Slot Diffusers

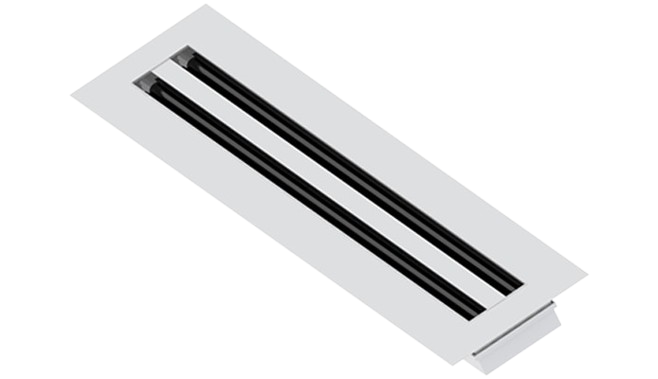

Tuttle & Bailey - 6000 Series Slot Diffusers
The 6000 Series offers versatile linear diffusers with adjustable air patterns for horizontal/vertical discharge, featuring high-grade aluminum construction and multiple slot configurations for diverse ceiling applications.
Features
Customizable Slots
Five slot widths (½” to 2″) with 1-8 slots per unit.
Architectural Integration
Concealed hanger brackets and field-cut blank-off strips (72″ lengths).
Dual-Function
Supply/return models available; supply units field-adjustable for airflow direction.
Specifications
Materials
Aluminum frames (White) with Black pattern controllers.
Accessories
Distribution plenums (LP-Plenum) and mitered corners (6000-MC).
Warranty
Documents

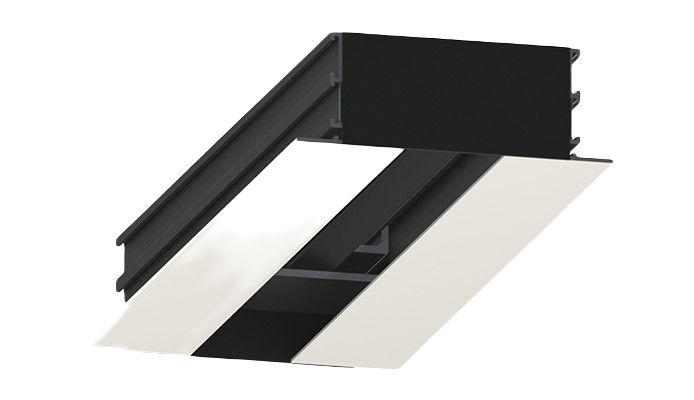

Tuttle & Bailey - AIR-TRAC Architectural Linear Diffuser
Architectural linear diffusers typically combine sleek design with adjustable airflow control, ideal for modern spaces requiring both aesthetic appeal and precise air distribution.
Features
Specifications
Warranty
Documents

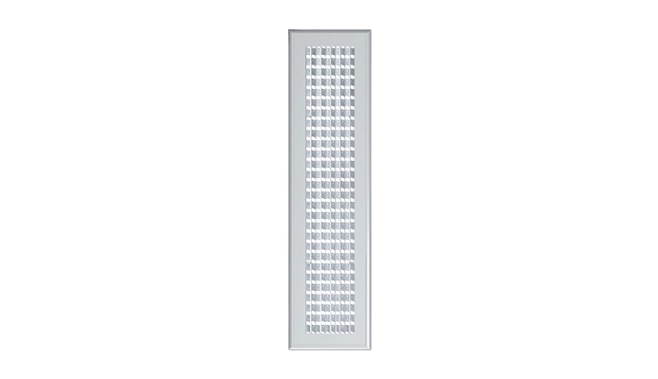

Tuttle & Bailey - EFPFS Linear Diffuser, Mixing Vanes, Aluminum, with Surface Plaster Frame
The EFPFS Agitair® Stripline® diffuser combines high-performance air mixing with architectural elegance, featuring extruded aluminum construction and removable mixing vanes for rapid temperature equalization. Designed for perimeter applications like window sills and ceilings, it delivers draft-free comfort with a seamless plaster frame integration.
Features
Advanced Air Mixing
Counter-flow angled vanes create turbulent discharge for high induction and 50% temperature differential reduction within 1 foot of discharge.
Architectural Integration
Extruded aluminum construction with White (WH) or Satin Anodized (SA) finishes blends with modern interiors.
Flexible Configuration
Available in 2-16 rows (2-row increments) with 72″ maximum one-piece lengths; multiple sections align via splice plates.
Specifications
Frame Options
Surface plaster frame (PF/PFS) with installation spacers for perfect alignment.
Accessories
Mitered corner sections and distribution plenums (DP) available.
Performance
ANSI/ASHRAE 70-2006 tested for throw, velocity, and pressure drop.
Warranty
Documents

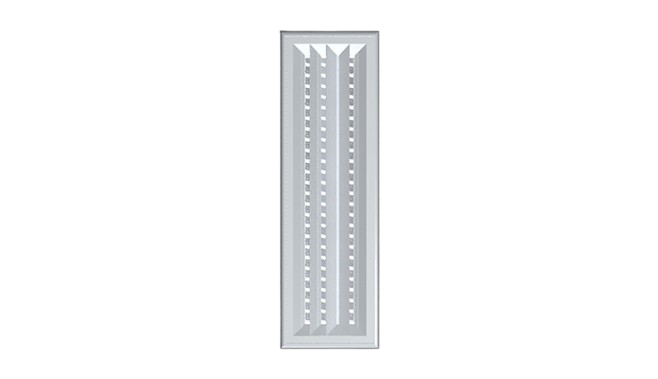

Tuttle & Bailey - EHPFS Louvered Linear Diffuser, Mixing Vanes, 1 or 2-Way Deflection, Aluminum, with Surface Plaster Frame
The EHPFS is a louvered linear diffuser with mixing vanes, offering 1 or 2-way deflection, ideal for surface plaster frame installations.
Features
Air Discharge:
Provides 1 or 2-way horizontal discharge patterns for effective air distribution. :contentReference[oaicite:16]{index=16}
Construction:
Extruded aluminum fixed louvers with removable cores for easy maintenance. :contentReference[oaicite:17]{index=17}
Performance:
Designed to decrease inlet pressure loss and ensure rapid mixing of air, eliminating drafts and reducing noise. :contentReference[oaicite:18]{index=18}
Accessories:
Optional frames, mitered corner sections, and distribution plenums are available. :contentReference[oaicite:19]{index=19}
Installation:
Suitable for surface or flush mounting; maximum one-piece length is 72″. :contentReference[oaicite:20]{index=20}
Specifications
Sizes:
Available in various configurations; consult manufacturer for detailed dimensions. :contentReference[oaicite:21]{index=21}
Finish:
Standard White (WH) paint finish; other finishes available upon request. :contentReference[oaicite:22]{index=22}
Application:
Ideal for high-end spaces like luxury hotels and airport lounges requiring efficient air distribution. :contentReference[oaicite:23]{index=23}
Warranty
Documents
