Industrial Dampers
Industrial Damper Manufacturers
United Enertech
Air Balance
Louvers & Dampers
Mestek, Inc. is a family of over 45 specialty manufacturers providing heating, ventilating, and air conditioning products, as well as metal forming machinery and architectural products. Their diverse portfolio serves various facets of the HVAC equipment and building envelope industries.
Featured Industrial Dampers

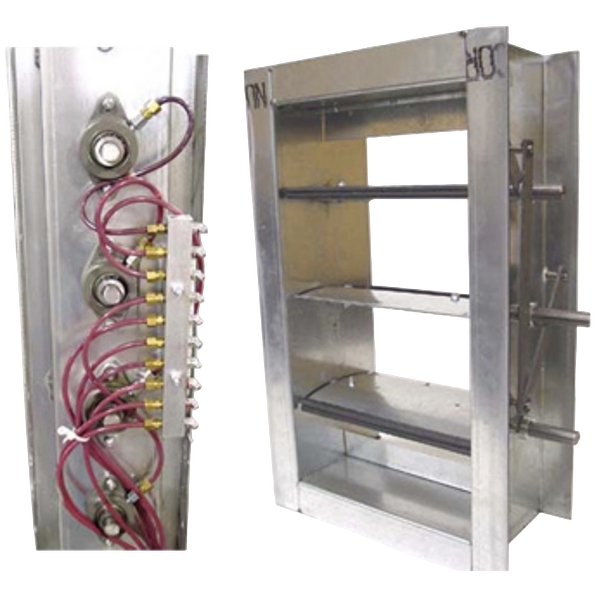

United Enertech - Heavy Duty, Flanged, All Steel, Airfoil Blades, up to 40 w.g."
United Enertech's Heavy Duty Flanged Damper features all-steel construction with aerodynamic airfoil blades, designed for extreme-pressure applications up to 40" w.g. The rugged flanged design ensures leak-tight performance in industrial and commercial HVAC systems requiring high-static pressure control.
Features
Industrial-Grade Construction
All-steel welded frame and airfoil blades withstand pressures up to 40″ w.g. for demanding environments.
Flanged Connection System
Heavy-duty flanges with gasketed seals provide leak-tight duct connections under extreme static pressures.
Aerodynamic Airfoil Blades
Precision-formed blades minimize turbulence and pressure drop while maintaining precise airflow control.
Heavy-Duty Actuation Options
Compatible with pneumatic, electric, or manual actuators for reliable operation in high-pressure systems.
Corrosion-Resistant Finish
Standard epoxy coating with optional stainless steel construction for harsh environments.
Specifications
Pressure Rating
Tested and rated for static pressures up to 40″ w.g. (10,000 Pa).
Materials
14-gauge steel frame, 12-gauge steel blades with continuous welds at all seams.
Blade Types
Airfoil profile blades with 3/8″ diameter stainless steel shafts.
Leakage Rating
Class 1 leakage performance when fully closed (≤ 4 cfm/sq.ft at 4″ w.g.).
Temperature Range
-20°F to 500°F (-29°C to 260°C) standard; high-temp configurations available.
Warranty
Documents

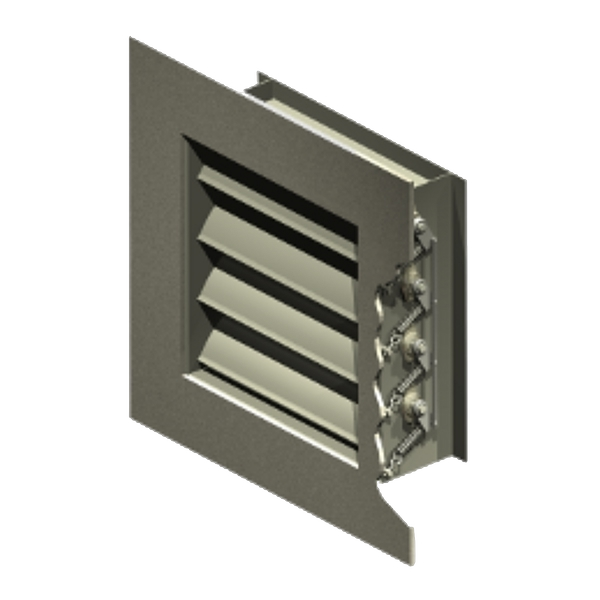

United Enertech - ICBL-20 (Heavy Duty Blast Damper / Shock Tube Tested)
Shock-tube-tested for blast protection, the ICBL-20 dampers withstand sudden pressure changes in critical facilities. Available in flange-mounted configurations with material options for corrosive environments.
Features
Blast Resistance
Validated through high-speed shock tube testing (10 psi dynamic pressure).
Construction Options
Carbon steel, stainless steel, or aluminum variants.
Compliance
Meets FEMA 361 and ICC-500 standards for protective structures.
Specifications
Testing
Full-scale explosive testing at independent labs.
Mounting
Flange connections for secure installation.
Typical Use
Military, chemical plants, and high-risk infrastructure.
Warranty
Documents
air balance - Industrial Single Blade Round Control Damper
Heavy-duty industrial damper for precise airflow regulation in high-pressure systems.
Features
Heavy-Duty Build
12-gauge steel blade with stainless steel shaft.
Specifications
Pressure Rating
Up to 10″ w.g. static pressure.
Warranty
Documents
Louvers & Dampers - Industrial Single Thickness Formed Steel Blade Control Damper
Heavy-duty damper for industrial airflow control, featuring reinforced construction for high-pressure systems and hostile environments.
Features
Construction
12-gauge formed steel blades with 3/8″ stainless steel shafts.
Durability
Continuous welds at all seams with optional galvanized or epoxy coating.
Actuation
Manual lever, pneumatic cylinder, or electric actuator options.
Specifications
Pressure Rating
10″ w.g. maximum static pressure.
Temperature Range
-20°F to 500°F (-29°C to 260°C).
Blade Types
Parallel or opposed blade configurations available.
Warranty
Documents
