Modine’s infrared heaters provide an excellent heating solutions for backyard patios, restaurants, workshops, and more. Modine offers several gas-fired and electric models in various sizes, with inputs ranging from 1,500 to 200,000 Btu/Hr. The key advantage lies in their ability to provide instant heat, making them ideal for spaces requiring quick warmth without waiting for traditional heaters to circulate air. Electric infrared heaters are also energy-efficient, as they heat targeted areas directly, avoiding unnecessary energy consumption. With diverse applications in residential, commercial, and industrial spaces, these heaters offer a versatile and focused solution for achieving comfort in any environment.

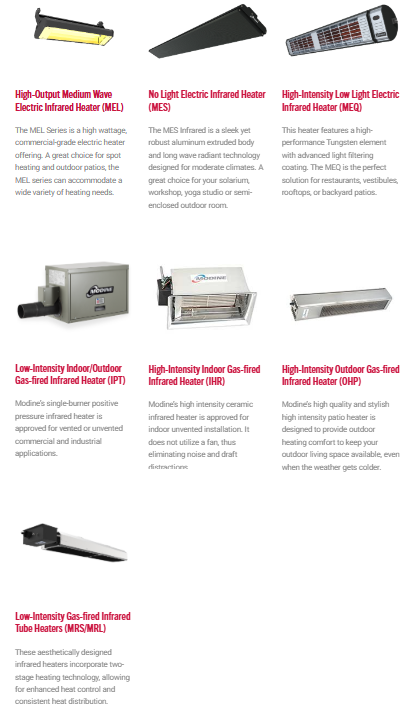

Infrared Heater Options

• High-Output Medium Wave Electric Wave (MEL)
• No Light Electric Infrared Heater (MES)
• High-Intensity Low Light Electric Infrared Heater (MEQ)
• Low-Intensity Indoor/Outdoor Heater (IPT)
• High-Intensity Indoor Heater (IHR)
• High-Intensity Outdoor Heater (OHP)
• Low-Intensity Infrared Tube Heaters (MRS/MRL)

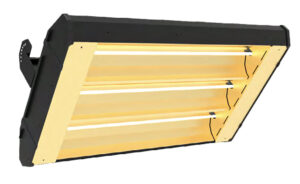

High-Output Medium Wave Electric Wave (MEL)

The MEL Series is a high-wattage, commercial-grade electric heater offering. A great choice for spot heating and outdoor patios, the MEL series can accommodate a wide variety of heating needs. Heaters are equipped with a specially designed reflector for optimal radiant heat output and optional wall mounting brackets allow adjustment of the heating direction.

High-output medium wave elements produce a mild white light while operating. Light is visible on walls and at the ground level, but is around 30% less bright than a typical short-wave element. However, high-output medium wave elements have an output equal to their short-wave counterparts, making them the preferred choice for spot heating, outdoor patios, and other applications where more heat is required but the short wave elements’ intense brightness is not.

Features & Benefits

• High-end quality and compact, aesthetic design
• Black powder-coated housing
• Single, double, or triple lamp models
• Gold-colored anodized aluminum reflectors reduce light glare
• High temperature nylon louvered end caps

Available Models:

• Single Elements
• Double Elements
• Triple Elements

Accessories:

• Mounting Kit
• Element Guards
• Wall Mounting Brackets

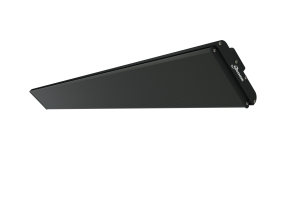

No Light Electric Infrared Heater (MES)

Redefine your space with our new no-light electric infrared heater. Featuring a sleek yet robust aluminum extruded body and long wave radiant technology, this heater is designed to take the chill out in moderate climates. A great choice for your solarium, workshop, yoga studio or semi-enclosed outdoor room, available in 1500 and 3200w.

Features & Benefits

• Long wave radiant and convective heat output provides consistent and powerful heat
• Zero light emission keeps the ambiance of your environment in tact
• Architectural design with powder coated aluminum body and low clearance brackets
• Ideal for spaces with minimal wind exposure

Models

• MES15A01: 1500 watts, 120 volts, 12.5 amps, 5,115 BTUs, width 32.5in, height 6.8in
• MES32A11: 3200 watts, 208 volts, 15.4 amps, 10,912 BTUs, width 66in, height 6.8in
• MES32A12: 3200 watts, 240volts, 13.3 amps, 10,912 BTUs, width 66in, height 6.8in

Heating Coverage Patterns

• MES15A01: width 8′ (2.4m), depth 6′ (1.8m), height 8′ (2.4m)
• MES32A11: width 9′ (2.7m), depth 7′ (2.1m), height 8′ (2.4m)
• MES32A12: width 9′ (2.7m), depth 7′ (2.1m), height 8′ (2.4m)

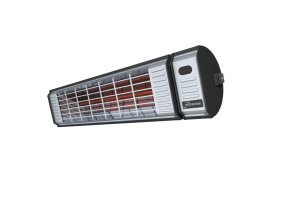

High-Intensity Low Light Electric Infrared Heater (MEQ)

Extend your patio season with the MEQ. This heater features a high-performance Tungsten element with advanced light filtering coating to take the edge off on cool evenings. With a powered-coated extruded Aluminum body, on board controls and power outputs up to 4800w, the MEQ is the perfect solution for restaurants, vestibules, rooftops, or backyard patios.

Features & Benefits

• High-intensity, low light Tungsten bulb that supplies instantaneous, directional heat for indoor and outdoor applications
• Evenly distributed heat that is practically unaffected by windy environments
• Electrically efficient radiant heat reduces wasted energy by warming people and objects and not the air between them
• Powder coated extruded aluminum body resists corrosion and deformation over time
• Built-in controls with remote
• Completely silent operation

Models

• MEQ15A01: 1500 watts, 120 volts, 12.5 amps, 5,115 btus, width 27.6 in, height 6.6 in
• MEQ30A12: 2250/3000 watts, 208/240 volts, 10.8/12.5 amps, 7,673/10,230 btus, width 39.6 in, height 6.6 in
• MEQ48A12: 3605/4800 watts, 208/240 volts, 17.3/20amps, 12,293/16,368 btus, width 46.3, height 6.6 in

Heat Coverage Patterns

• MEQ15A01: width 7’ (2.1m), depth 6’ (1.8m), height 6’7” (2.0m)
• MEQ30A12: width 9’ (2.7m), depth 8’ (2.4m), height 8’ (2.4m)
• MEQ48A12: width 11′ (3.4m), depth 9′ (2.8m), height 9’ (2.8m)

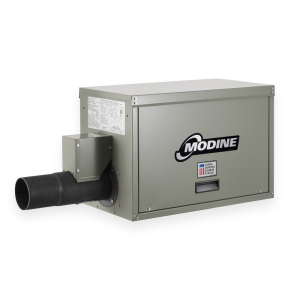

Low-Intensity Indoor/Outdoor Heater (IPT)

Modine’s single-burner positive pressure infrared heater is approved for vented commercial and industrial applications. A water-resistant control compartment provides weatherproof protection and allows either indoor or outdoor installation.

Features & Benefits

• Heat-treated darkening 16-gauge aluminized steel provides corrosion resistance for longer life and increases both radiant heat output
• Polished aluminum reflectors direct radiant heat to the desired area for increased comfort over more extensive areas.
• Removable side-access panels on both sides of the burner box can be removed to access either side of the unit.
• Durable polyester-powder paint maintains a life-long new appearance.
• Permanently-lubricated combustion blower motor reduces maintenance.
• 180 degree-rotating gas valve allows convenient access from either side of the burner box.
• The sealed burner compartment allows manifold pressure adjustments during unit operation, which increases ease of installation and service.
• Flame sensor and ignitor mounted externally to the combustion chamber improve service access.
• A flame observation window on the underside of the combustion chamber provides a convenient visual check of unit operation from ground level.
• The gas valve operation light on the back panel Indicates that the combustion blower is operating.
• Four-trial, direct spark ignition with a separate flame sensor provides reliable ignition.
• Weatherproof, water-resistant casing maximizes application flexibility for outdoor installation.
• ETL design certified
• Designed, Engineered & Assembled in the USA

Options

• 8 Model sizes
• Input range from 50,000 to 200,000 Btu/hr
• Single or two stage controls
• 20 to 70 foot tubes system length
• Straight or u-shaped tube configuration

Accessories

• High altitude kit

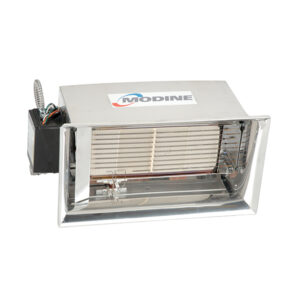

High-Intensity Indoor Heater (IHR)

Modine’s high-intensity ceramic infrared heater is approved for indoor unvented installation. It does not utilize a fan, thus eliminating noise and draft distractions. Gas and power connections are simple, and maintenance is inexpensive since there are no moving parts to maintain.

Ideal for use in manufacturing facilities, vehicle repair centers, warehouses, or loading docks. Also perfect for indoor sports spaces like indoor tennis courts or golf driving ranges.

Features & Benefits

• Increased temperature and surface area to provide maximum heat transfer while maintaining lower gas input ratings with high temperature cordierite-based grooved ceramic tiles with perforations along both the top and bottom of the grooves.
• Polished aluminum reflectors efficiently direct radiant heat to the desired area for increased comfort over wider areas.
• Eliminates fan noise, drafts, and maintenance, and reduces electrical energy costs.
• Accommodates a wide range of electrical inputs.
• Convenient externally mounted controls give access to the gas valve, control system, transformer, and gas orifices – increasing the ease of installation service.
• With the removal of one fastener, the burners can be replaced – eliminating the removal of the unit from the mounted position.
• CSA design certification for indoor, unvented operation in commercial and industrial installations.
• 16 gauge aluminized steel frame.
• Designed, Engineered & Assembled in the USA

Options

• Input ranges from 30,000 BTU/hr through 160,000 BTU/hr
• 115V, 25V or millivolt controls
• Natural or propane gas
• Direct spark or self-energizing standing pilot ignition
• Propane and/or high altitude kits for field conversions



Accessories

• Chain Mounting set – 5” chain set with 4 “S” hooks. Preset mounting angle of 30.
• Horizontal parabolic reflector – used to direct rays downward, can be used for matching horizontal mounting specifications.
• Full parabolic reflector – directs rays in a more focused pattern, typically used in high mounting application.
• Full parabolic reflector with screen – directs rays in a more focused patter. Outer screen protects ceramic grids from objects striking the heater.
• DR heater screen – screen slips on the outside of the reflector and protects the ceramic grids.
• Warning plaque – hangs below heater, restates the clearance to combustible warning.

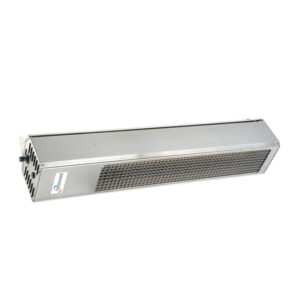

High-Intensity Outdoor Heater (OHP)

Energy Efficient Infrared Technology

Reinvent your patio with the comfortable warmth of an infrared patio heater.  Modine’s high-quality and stylish high-intensity infrared patio heater is designed to provide outdoor comfort heating. Help take the chill off those cooler days and nights and extend the outdoor living season.

In contrast to traditional outdoor heaters, infrared alternatives will direct their energy to surrounding objects rather than the air. Not only does this increase efficiency, but also provides you with more warmth.

Features & Benefits

• Instant heat: as soon as the heater is turned on, you will start to feel the warmth.
• By heating the objects directly, the high-intensity patio heater does not need a fan to circulate the heated air – eliminating the loss of heat like a traditional heater.
• Without the need for a fan, the heater runs quietly to keep your space peaceful.
• Extend the outdoor season: the perfect solution to stylishly extend the outdoor season for both residential or commercial applications.
• Wind and rain protective design.
• Increased ease of installation and service with externally-mounted controls allows for convenient access to gas value, controls systems, transformer, and gas orifices
• Brushed stainless steel housing for maximum corrosion resistance.
• ETL Design Certified to ANSI Z83.26 standard.
• Designed, Engineered & Assembled in the USA

Model Options:

• 31,000 and 34,000 BTU inputs
• Natural or propane gas
• Direct Spark ignition or self-energizing standing pilot ignition
• Versatile mounting options
• Even level of heat distribution
• Approved for outdoor use only

Available accessories:

• Mounting brackets

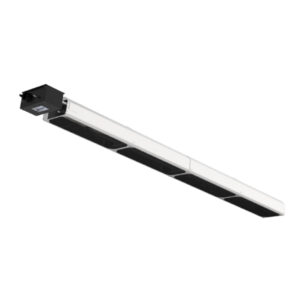

Low-Intensity Infrared Tube Heaters (MRS/MRL)

These aesthetically designed infrared heaters incorporate two-stage heating technology, allowing for enhanced heat control and consistent heat distribution. Available in 9-foot or 16-foot lengths, the gas-fired, low-intensity heaters come in both natural gas and propane configurations. They are designed for easy installation and are ready to use right out of the box. With a simple yet sophisticated design, these units feature a modular decorative grill, sleek aluminum housing, and durable stainless steel flexible gas connectors. These stylish heaters are perfect for enhancing various outdoor areas, including homes, restaurants, entertainment venues, and other businesses looking to maximize their entertaining spaces, regardless of the weather.

Features & Benefits

• Easy configuration and assembly in less than 5 minutes
• Two stage operation for greater heat control and increased safety
• Attractive heaters with modular grille that enhances the ambiance of any outdoor spaces
• Hanging chains kit and flexible gas connector included
• 24 volt controls

Available models:

• MRS 15-050N ranges from 35,000 – 50,000 btu/h
• MRS 15-050P ranges from 45,000 – 50,000 btu/h
• MRL 30-065N/MRL 30-065P ranges from 50,000 – 65,000 btu/h
• MRL 30-065N ranges from 35,000 – 50,000 btu/h
• MRL 30-080N/MRL 30-080P ranges from 52,000 – 80,000 btu/h
• MRL 30-100N/MRL 30-100P ranges from 65,000 – 100,000 btu/h
