Featured Grilles & Registers

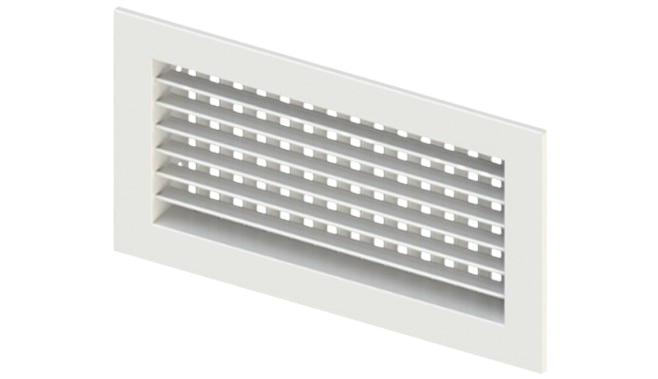

Tuttle & Bailey - T54 Horizontal Face Bars, Vertical Rear Bars
The T54 stainless steel supply grille features double-deflection blades for superior air pattern control in corrosive environments, tested to ANSI/ASHRAE Standard 70-1991.
Features
Double Deflection
Horizontal front + vertical rear bars for 3D airflow control.
Corrosion Resistance
304 or 316 stainless steel construction.
Clean Installation
Countersunk screw holes for flush mounting.
Specifications
Sizes
4″x4″ to 48″x48″.
Finish
Satin polish (SP) or optional white (WH).
Accessories
Stainless steel opposed blade damper available.
Warranty
Documents

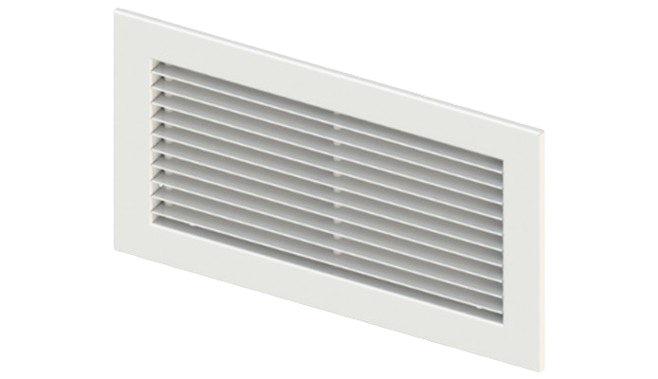

Tuttle & Bailey - A75 1/2 Spacing, Horizontal Bars, 0° Deflection
The A75 aluminum return grille features fixed horizontal bars on 1/2" centers with 0° deflection, designed for seamless integration with Tuttle & Bailey's A50/A60 supply grilles. Its extruded aluminum construction ensures durability while maintaining effective airflow area.
Features
Precision Engineering
1/2″ bar spacing with 1-1/4″ mitered border maintains optimal airflow (ANSI/ASHRAE 70-2006 tested) :cite[1].
Material Quality
Extruded aluminum bars and frame with white electrocoat finish (HB-H pencil hardness) :cite[1]:cite[2].
Installation Flexibility
Optional A45 plaster frame and opposed blade dampers (AOBD/SOBD) for varied applications :cite[1].
Specifications
Sizes
6″x4″ to 48″x48″ in 1″ increments (72″x48″ sectional available) :cite[2].
Finishes
White (WH), Mill (ML), Aluminum Paint (AP), Off-White (OW), Flat Black (FB), Match Paint (MP) :cite[1].
Performance
Minimizes intake velocity and inlet pressure for quiet operation :cite[1].
Warranty
Documents

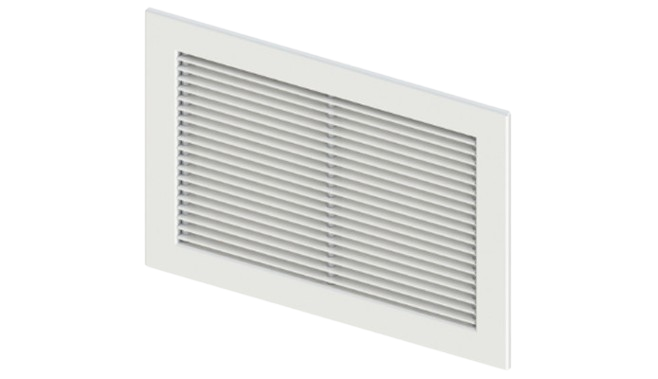

Tuttle & Bailey - T115 Heavy Duty Return Grille, Steel
The T115 Heavy Duty Return Grille is designed for demanding commercial and industrial environments requiring rugged airflow management. Featuring robust steel construction and versatile deflection options, it excels in high-traffic areas like gymnasiums and warehouses where impact resistance is critical
Features
Heavy-Duty Construction
16-gauge steel frame with 14-gauge bars for maximum durability :cite[1]:cite[2].
Deflection Options
Choose between 38° (1/2″ spacing) or 0° (3/8″ spacing) stationary bars to control airflow patterns :cite[1]:cite[2].
Corrosion Resistance
White electrocoat finish baked at 315°F (HB-H pencil hardness) withstands humid conditions :cite[1]:cite[2].
Optional Damper
Factory-mounted steel opposed blade damper (SOBD) for airflow regulation :cite[1]:cite[2].
Specifications
Sizes
6″x4″ to 48″x48″ in 1″ increments :cite[1]:cite[2].
Performance
ANSI/ASHRAE Standard 70-1991 tested for isothermal airflow performance :cite[1]:cite[2].
Installation
Optional steel mounting frame (45) for plaster applications :cite[1]:cite[2].
Finishes
White (WH), Mill (ML), Aluminum Paint (AP), Off-White (OW), Flat Black (FB), Match Paint (MP) :cite[1]:cite[2].
Warranty
Documents

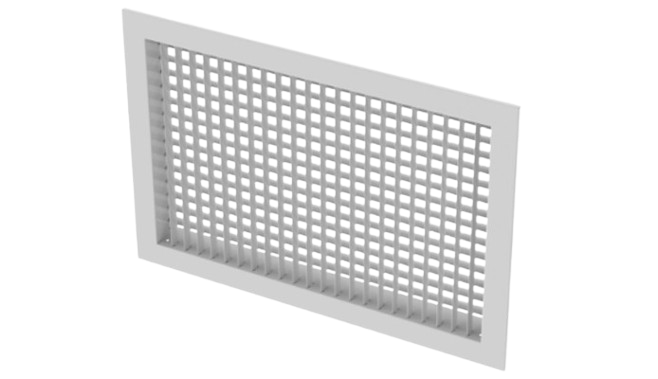

Tuttle & Bailey - AVS64 Vertical Face Bars Horizontal Rear Bars, Steel Margin
A heavy-duty steel return air grille featuring vertical face bars and horizontal rear bars for structural rigidity and airflow control in commercial HVAC systems.
Features
Dual-Bar Design
3/8″ thick vertical face bars with 1/4″ horizontal supports.
Secure Mounting
Steel margin frame with countersunk screw holes.
Finish Options
White electrocoat (standard) or custom powder coatings.
Specifications
Deflection
0° parallel bars on 1/2″ centers.
Sizes
4″x4″ to 48″x48″ (sectional up to 96″x48″).
Airflow
ANSI/ASHRAE 70-1991 tested performance.
Warranty
Documents
