Fixed Louvers
Fixed Louver Manufacturers
United Enertech
Air Balance
Louvers & Dampers
Mestek, Inc. is a family of over 45 specialty manufacturers providing heating, ventilating, and air conditioning products, as well as metal forming machinery and architectural products. Their diverse portfolio serves various facets of the HVAC equipment and building envelope industries.
Featured Fixed Louvers

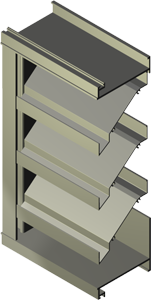

United Enertech - High Performance 4" Fixed Louver
The D-HFA-4 fixed louver delivers exceptional weather protection with its 4" deep extruded aluminum blades. Ideal for architectural and industrial applications requiring high free area and minimal pressure drop.
Features
Superior Weather Resistance
Tested water penetration at 901 FPM with 0.18″ w.g. pressure drop.
Structural Integrity
30 PSF wind load rating withstands extreme weather conditions.
Efficient Design
56% free area provides optimal airflow with minimal restriction.
Specifications
Dimensions
Maximum single section: 120″W x 84″H or 84″W x 120″H.
Materials
Heavy-duty extruded aluminum construction.
Blade Configuration
50° fixed angle blades with 4″ depth.
Warranty
Documents

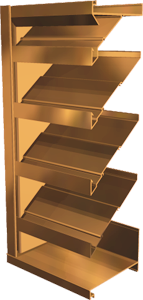

United Enertech - High Performance 6" Fixed Louver
Deep-profile fixed louver designed for architectural applications requiring weather resistance and aesthetic integration.
Features
Specifications
Warranty
Documents
air balance - 7" Deep Horizontal Chevron Drainable Blade Wind Driven Rain and Impact Resistant Louver
Heavy-duty louver combining wind-driven rain protection (AMCA 500-L tested) with impact resistance for coastal/high-wind zones. Features chevron-pattern drainable blades and reinforced frame construction.
Features
Weather Resistance
AMCA 500-L tested for 12.5 psf wind-driven rain.
Drainage System
45° chevron blades with integrated water channels.
Impact Rating
Withstands 110 mph windborne debris (ASTM E1996).
Specifications
Free Area
40-45% depending on blade configuration.
Construction
16ga galvanized steel with marine-grade coatings.
Testing
Miami-Dade County NOA approved.
Warranty
Documents

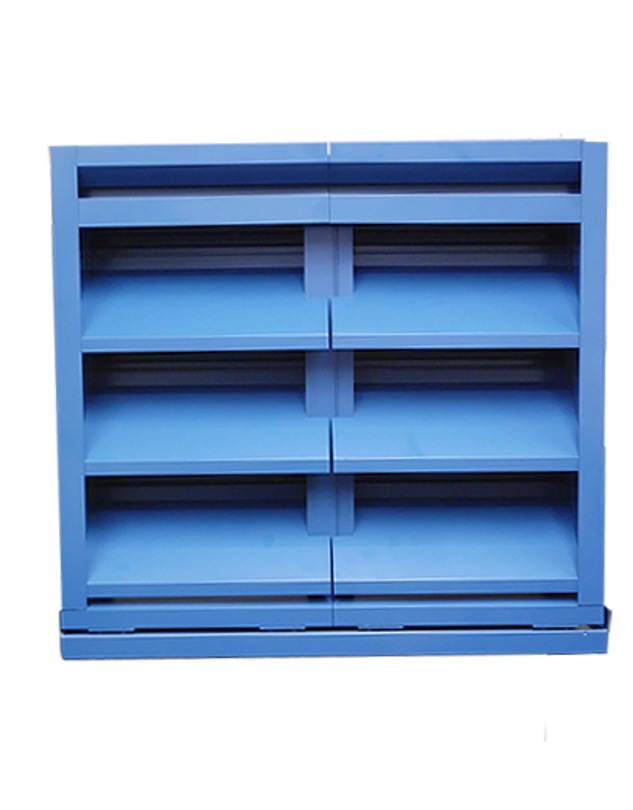

Louvers & Dampers - 6" Deep Continuous Line Extruded Aluminum Drainable Blade Louver with Recessed Mullions
Architectural-grade louver system featuring seamless extruded aluminum construction with integrated drainage channels, designed for high-performance weather protection in commercial buildings.
Features
Monolithic Design
Continuous 6″ deep extrusions eliminate seams for superior weather resistance.
Drainage System
45° blade angle with weep slots and internal water channels (AMCA 500-L tested).
Structural Reinforcement
Recessed 1/4″ thick aluminum mullions at 4′ intervals.
Specifications
Material
6063-T5 aluminum with Class I anodized or fluoropolymer finish.
Performance
0.08″ w.g. pressure at water penetration (987 FPM).
Max Panel Size
12′ continuous spans without intermediate supports.
Warranty
Documents
