Fan Heaters
Fan Heater Manufacturers
Ouellet
Featured Fan Heaters

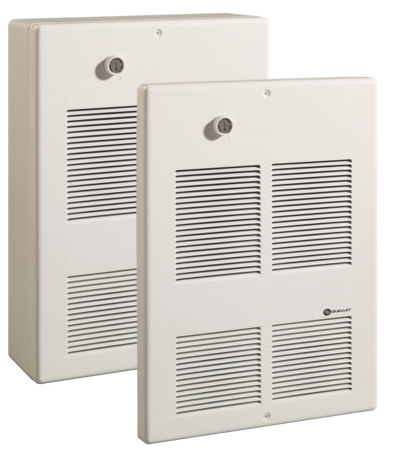

Ouellet - Commercial Wall Fan Heater
Ouellet's OAC Series Commercial Wall Fan Heaters are designed to provide rapid heat in areas affected by cold drafts, suitable for residential, commercial, and industrial applications. These units can be recessed or surface-mounted and are powered by a closed, factory-lubricated motor that drives a fan to blow warm air downward, enhancing air circulation.
Features
Durable Construction
18-gauge steel front cover with a standard epoxy/polyester powder paint finish ensures longevity and resistance to wear.
High-Limit Temperature Control
Equipped with an automatic reset high-limit temperature control for enhanced safety during operation.
Efficient Fan Operation
Closed, factory-lubricated motor drives a 160 cfm fan (single unit: 55 dBA); double and triple units feature multiple fans for increased airflow.
Fan Delay Feature
Fan delay purges residual heat from the heater, optimizing energy efficiency.
Durable Heating Element
Incorporates a robust tubular heating element with fins for effective heat transfer.
Integrated Controls
Built-in thermostat included with control knob or tamperproof options; 24V relay available with or without transformer.
Versatile Installation
Minimum clearance from adjacent walls: 10 inches (25.4 cm); surface mounting box and semi-recessed trim kits available.
Color Options
Standard colors include white and almond; optional colors such as metallic silver, bronze, metallic charcoal, aluminum, semi-gloss black, and sand are available upon request.
Specifications
Voltage Options
Available in 120V, 208V, 240/208V, 277V, 347V, 480V, and 600V, accommodating both single and three-phase configurations.
Wattage Range
Models range from 1,500W to 12,000W, providing flexibility for various heating requirements.
Airflow Capacity
Single units feature a 160 cfm fan; double and triple units incorporate multiple fans to enhance airflow.
Noise Levels
Operating noise levels are approximately 55 dBA for single units, 58 dBA for double units, and 61 dBA for triple units.
Installation Clearance
Requires a minimum clearance of 10 inches (25.4 cm) from adjacent walls.
Certifications
cULus listed, ensuring compliance with North American safety standards.
Warranty
Backed by a 5-year warranty against defects, providing assurance of quality and reliability.
Warranty
Documents

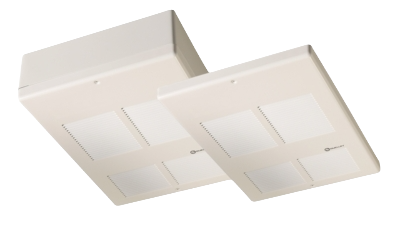

Ouellet - Commercial Ceiling Fan Heater
The OAS suspended unit heater delivers high airflow for commercial/industrial spaces, featuring versatile mounting options and specialized controls for demanding environments including mining applications.
Features
Mounting Flexibility
Horizontal (wall/ceiling) or vertical installation with included brackets.
Industrial-Grade
Heavy-duty construction for warehouses, factories, and mines.
Specifications
Control Options
Factory-installed or kit-based controls available.
Airflow
High-capacity blower for large-space heating.
Warranty
Documents

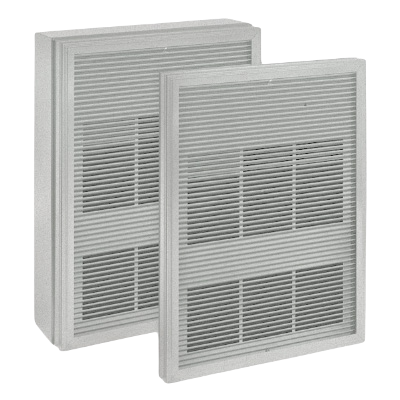

Ouellet - Architectural Aluminum Wall Fan Heater
The OAF-Series combines sleek aluminum housing with powerful fan-forced heating, designed for architectural integration in commercial spaces. Its low-profile design and optional custom colors blend seamlessly with modern interiors while providing efficient warmth.
Features
Aesthetic Design
Extruded aluminum housing with powder-coated finish (standard white or custom colors).
Quiet Operation
EC motor technology maintains <45 dB noise levels.
Smart Controls
Optional WiFi-enabled thermostat with zone control capability.
Specifications
Heating Capacity
1,500W-5,000W models available.
Airflow
Up to 250 CFM with adjustable louvers.
Mounting
Wall-mounted with concealed fasteners.
Warranty
Documents
Features
Specifications
Warranty
Documents
