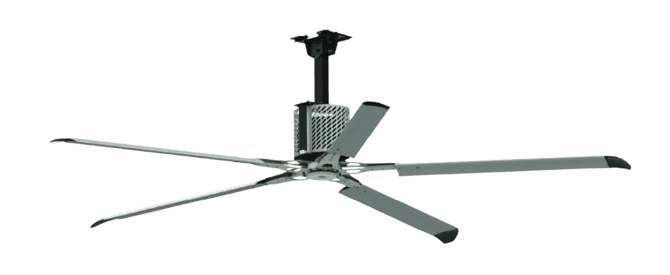

Epic Summit
HVLS Fan
Transform your sizeable industrial environment with the Summit Fan from EPIC Fans. This fan is expertly crafted to circulate air in substantial volumes, increasing comfort and productivity in sizable spaces such as large warehouses or event venues. The Summit Fan offers an exceptional combination of powerful air movement, elegant design, and energy-saving performance.
Features
The Summit fan operates at an impressively low sound level, under 45 dBA, though this may vary with installation conditions and the surrounding environment.
Control Options
Comes standard with wired touchscreen control, with additional possibilities for network control integration.
AMCA CFM Tested
EPIC Fans are AMCA CFM tested to ensure efficient and dependable performance. Detailed airflow metrics are available in the product’s specification sheet.
Customizable Options
Options include standard black anodized blades or a clear anodized alternative.
Wide Size Selection
Offered in sizes ranging from 8 to 24 feet in diameter, meeting various spatial needs.
Additional Features and Accessories
Mounting Extension
NEMA 4X VFD Enclosure
NEMA 4X Remote Enclosure
Corrosion Resistant Package (Consult Factory)
Multi Fan Remote (2-6)
BAS IntegrationSlave
Remote
Digital Controls
The Summit fans are equipped with the EPIC Fans iFan control system, enabling smooth integration into existing Building Management Systems and networking with other Summit units.
Specifications
Blades: 5
HP: 1.07 to 1.61 Equivalent
Disconnect Included: Yes
Line Reactor Included: Yes
Voltage Options: 120V/1Ø (8’ to 14’ Only), 208-240V/1Ø, 208-240V/3Ø, 460-480V/3Ø
Warranty
Electrical Warranty: 7-year
Labor Warranty: 1-year
