Convectors
Convector Manufacturers
Modine
Ouellet
Featured Convectors

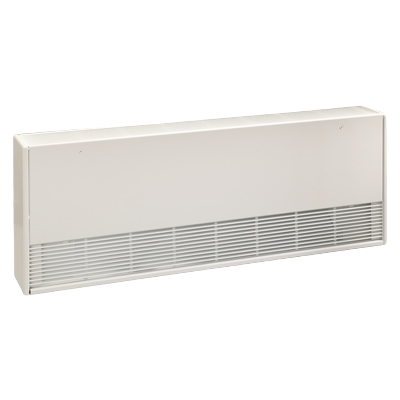

Ouellet - High Density Architectural Cabinet Convector
The OLA Series by Ouellet offers high-performance, natural convection heating solutions ideal for large commercial spaces requiring substantial heat output without fan noise. Its architectural design ensures both functionality and aesthetic appeal.
Features
High Power Rating
Provides up to 6,000W, suitable for extensive heating needs in commercial environments.
Durable Construction
Constructed with a 20-gauge steel cabinet and a 16-gauge steel front cover for enhanced durability.
Efficient Heating Elements
Equipped with three stainless steel tubular heating elements featuring aluminum fins for optimal heat distribution.
Flexible Installation
Designed for wall or floor mounting, with options for recessed installation (-FR models) and clean back (-BD) for versatile setup.
Built-in Safety Features
Incorporates a linear high-limit temperature control with automatic reset to ensure safe operation.
Specifications
Voltage Options
Available in 208V, 240/208V, 277V, 347V, and 600V configurations, accommodating various electrical systems.
Color and Finish
Standard colors include white and almond; optional colors such as metallic silver, bronze, metallic charcoal, textured black, beige-grey, aluminum, semi-gloss black, and sand are available upon request. Custom colors can be ordered for specific design requirements.
Control Options
Features a built-in tamperproof thermostat; additional mechanical, electronic, or pneumatic relays are available for enhanced control. Ouellet recommends using an electronic wall thermostat for improved comfort.
Installation Accessories
Offers various accessories for wall-to-wall installations, including corner kits, recess trim kits, relay boxes, and pedestal kits. A sub-base option is also available for specific installation needs.
Warranty
Backed by a 1-year warranty against defects, ensuring reliability and customer satisfaction.
Warranty
Documents
Ouellet - Architectural Cabinet Convector
The OCB aluminum draft barrier combines aesthetic appeal with heavy-duty performance, featuring narrow openings for safety and extruded aluminum construction for durability in commercial spaces.
Features
Aesthetic Integration
Sleek aluminum extrusion blends with modern interiors .
Safety Focus
Restricted front openings limit access to internal components .
Specifications
Material
Extruded aluminum front cover with reinforced structure .
Applications
Commercial buildings requiring discreet heating solutions .
Warranty
Documents

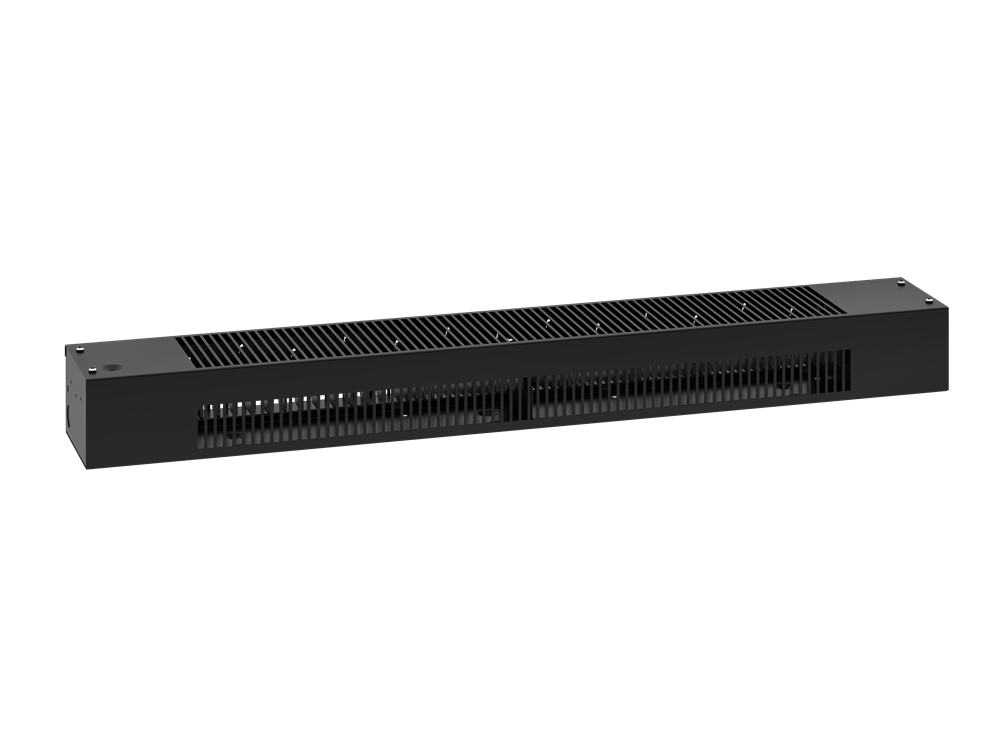

Ouellet - Trench insert floor convector
Recessed floor convectors that provide discreet perimeter heating, ideal for glass curtain wall applications where traditional baseboards aren't practical.
Features
Flush Installation
1.5″ deep housing with decorative grille.
High Output
Copper/aluminum heat exchanger for rapid warmth.
Specifications
Capacity
Up to 1,500W per linear foot.
Options
Hot water or electric elements available.
Warranty
Documents

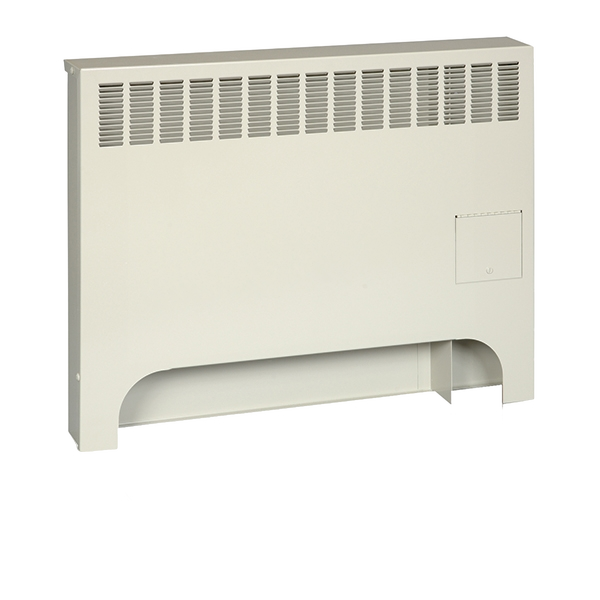

Modine - Steam/Hot Water Convector
A compact cabinet-style convector utilizing copper tube/aluminum fin heat exchangers for efficient space heating in commercial applications where floor space is limited.
Features
Compact Profile
Only 6″ deep cabinet fits under windows or in tight spaces.
Quiet Operation
Natural convection design requires no fans or moving parts.
Multiple Configurations
Bottom, top, or rear connections for flexible piping.
Specifications
Capacity
5,000-25,000 BTU/hr outputs.
Pressure Rating
150 PSI working pressure (300 PSI tested).
Options
Enclosure colors, louver designs, and condensate pans.
Warranty
Documents
