Controls
Control Manufacturers
All of the Above
Featured Controls

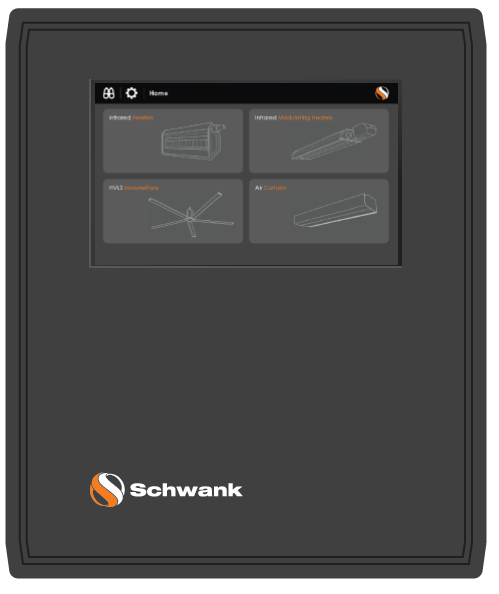

Schwank Schwank.ONE Control
The Schwank.ONE intelligent control system provides wireless monitoring and management of Schwank heating products via mobile devices, enabling precise temperature control and energy optimization.
Features
Wireless Connectivity
Controls up to 50 units via iOS/Android app with cloud-based access.
Energy Monitoring
Tracks real-time and historical energy consumption.
Multi-Zone Management
Creates heating zones with independent schedules and setpoints.
Maintenance Alerts
Automatically notifies of required service or filter changes.
Specifications
Compatibility
Works with Schwank infrared heaters and patio heaters.
Protocols
Supports WiFi, Bluetooth, and Modbus RTU.
Power
24V operation with backup battery option.
Warranty
3-year limited warranty on components.
Warranty
Documents

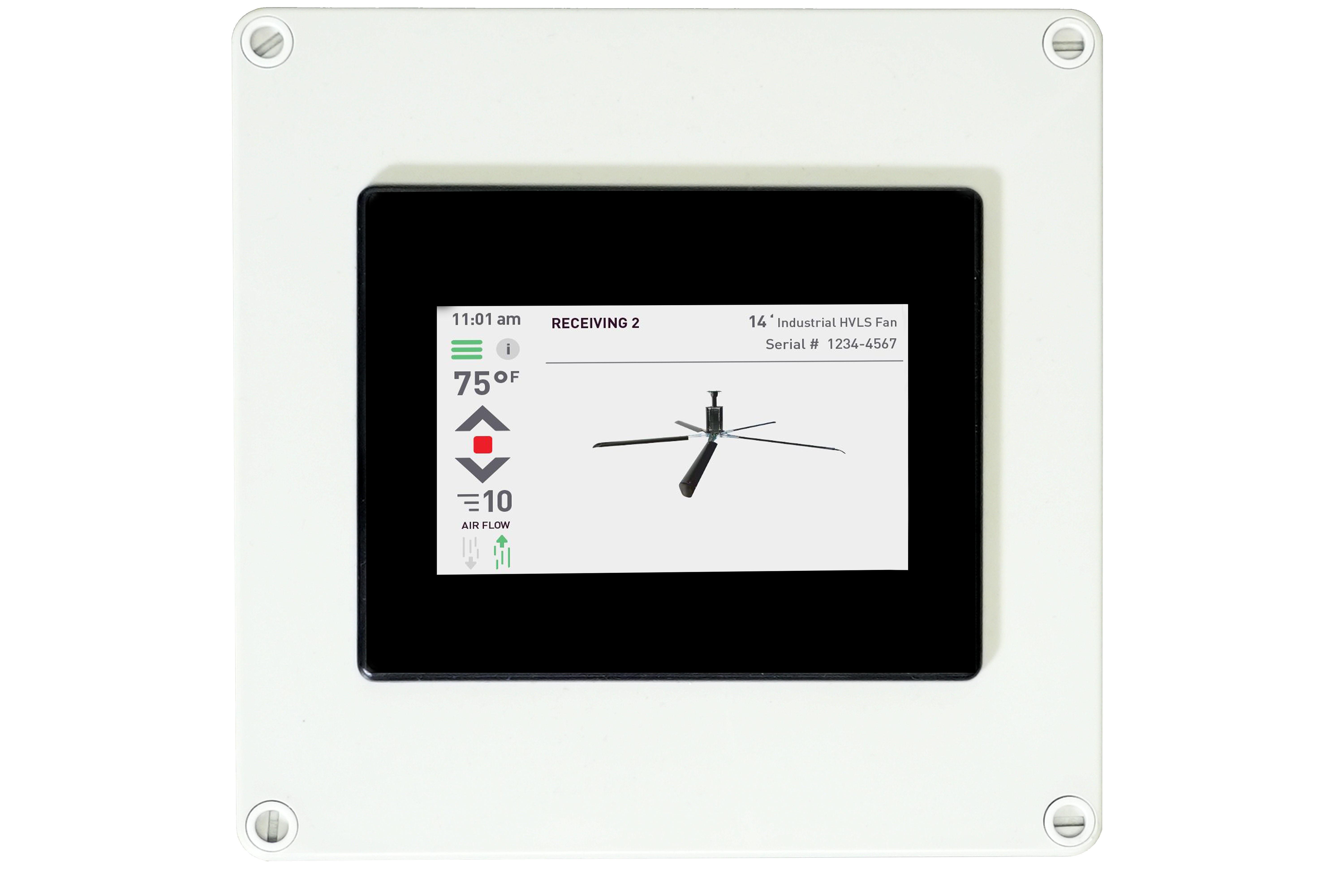

Epic Fans - iFan 7.0 Control Panel
The iFan 7.0 is a networked touchscreen control panel designed for managing up to 24 HVLS (High Volume, Low Speed) fans across 4 groups in commercial and industrial environments. It integrates advanced building management capabilities with user-friendly controls, supporting temperature-based automation and BMS connectivity
Features
Networked Control
Manages 24 fans simultaneously with group-based settings (e.g., speed, direction) for zones or large spaces :cite[4]:cite[7].
BMS Integration
Supports BACnet (TCP/IP and MSTP) and MODBUS protocols for seamless building automation :cite[1]:cite[3]:cite[7].
Environmental Adaptation
Temperature sensors allow programmable set points for automated fan operation based on ambient conditions :cite[1]:cite[5].
Durable Design
Bright touchscreen with NEMA 4X lockable enclosure option for harsh environments :cite[4]:cite[5].
Specifications
Power
120V AC required for operation :cite[5].
Compatibility
Works with Epic’s Colossus, Summit, and Apex HVLS fan models :cite[7].
Timers & Security
Scheduled operation and 4-digit passcode lock for restricted access :cite[6]:cite[7].
Pricing
$2,195 (MSRP) with free shipping to contiguous U.S. :cite[5].
Warranty
Documents

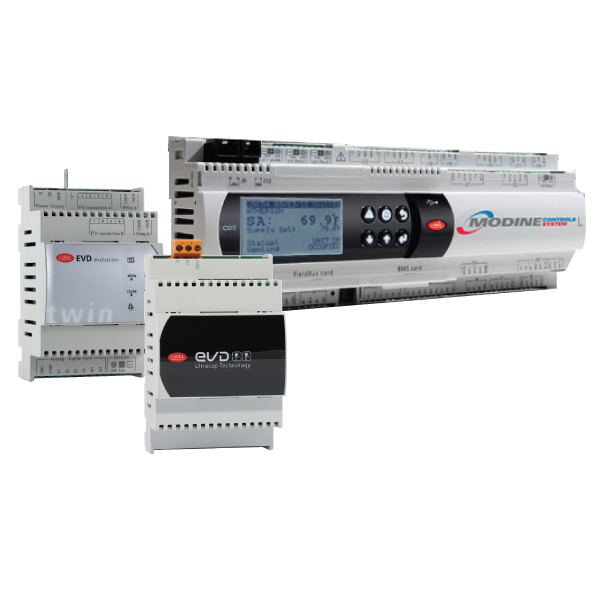

Modine Controls System
Modine's microprocessor-based control system optimizes HVAC equipment performance through advanced algorithms and BMS integration, ensuring energy efficiency and operational safety.
Features
Carel Microprocessor
32-bit processing with real-time monitoring of pressures/temperatures (eliminates gauge sets for diagnostics).
BMS Integration
BACnet® and LonWorks® compatibility for supervisory or full unit control.
User Management
Three-tier password protection (user/service/manufacturer levels) with 7-day scheduling.
Specifications
I/O Capacity
Multiple analog/digital inputs for complex HVAC/R applications.
Remote Access
RJ12 cable supports control interfaces up to 100 ft from equipment.
Safety
True relay outputs handle electrical surges; maintains safe operating envelope during BMS control.
Warranty
Documents

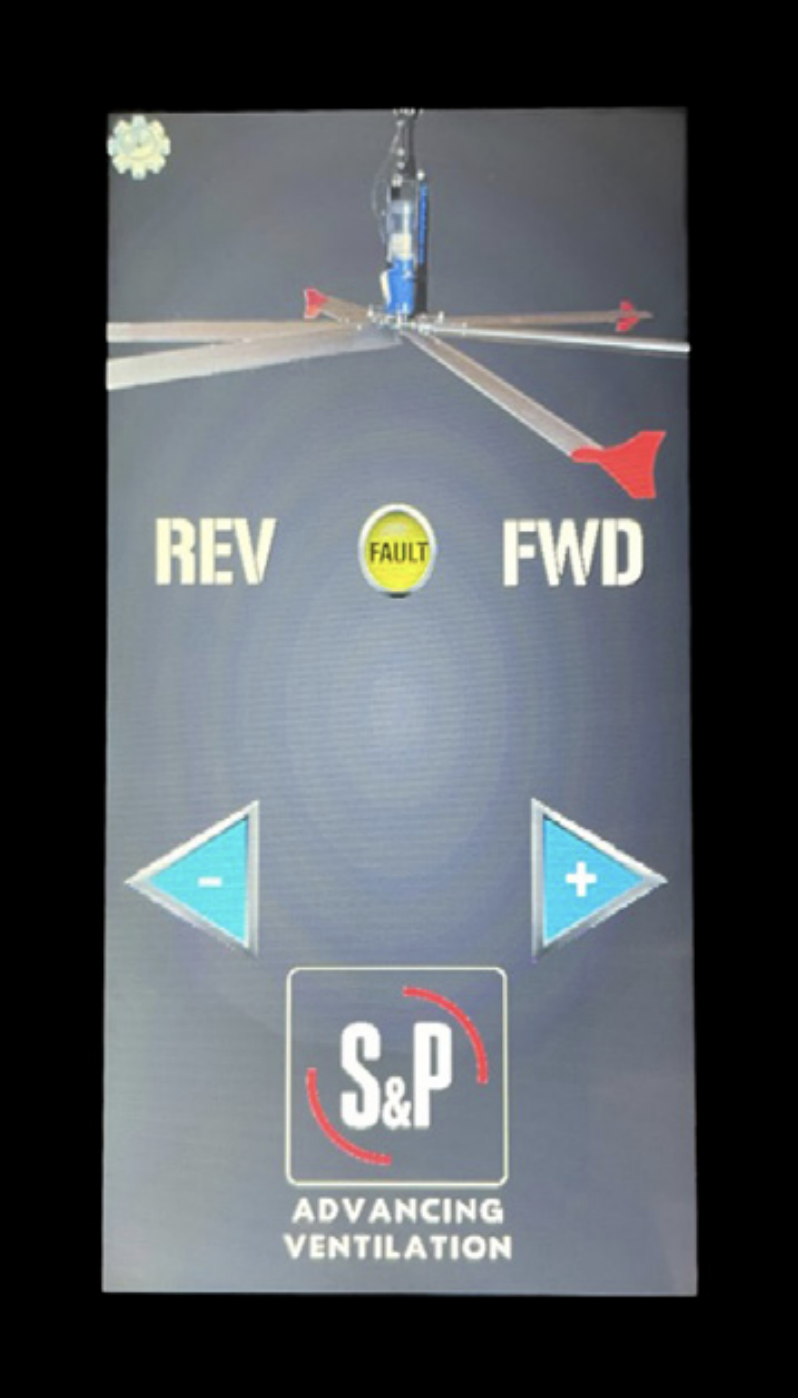

S&P - 7” Digital Touch Screen Multi-Fan Controller
The S&P 7” Digital Touch Screen Multi-Fan Controller is designed to manage multiple fans efficiently, offering precise speed and direction control through a user-friendly digital interface.
Features
Multi-Fan Control:
Manage multiple fans simultaneously, with the capability to control each individually or in groups, enhancing flexibility in various applications. :contentReference[oaicite:0]{index=0}
Speed and Direction Control:
Provides 0-100% speed control and allows fans to operate in both forward and reverse directions, catering to diverse ventilation needs. :contentReference[oaicite:1]{index=1}
Digital Interface:
Equipped with a fully digital interface featuring visual indicators for speed and direction, simplifying operation and monitoring. :contentReference[oaicite:2]{index=2}
Password Lockout:
Incorporates a password lockout feature to prevent unauthorized access, ensuring secure and controlled operation. :contentReference[oaicite:3]{index=3}
Specifications
Power Supply:
Operates with an external 24V power source, which is supplied with the controller. :contentReference[oaicite:4]{index=4}
Fan Capacity:
Capable of controlling up to 10 fans, making it suitable for various setups. :contentReference[oaicite:5]{index=5}
Dimensions:
Measures 4.75 inches in width, 7.125 inches in length, and 0.5 inches in depth, allowing for flexible installation options. :contentReference[oaicite:6]{index=6}
Rating:
Rated IP30, indicating protection against solid objects greater than 2.5 mm but not against water ingress. :contentReference[oaicite:7]{index=7}
Display Resolution:
Features a display resolution of 272 x 480 pixels, ensuring clear and detailed visual feedback. :contentReference[oaicite:8]{index=8}
Warranty
Documents
