Balancing/Regulating Dampers
Balancing/Regulating Damper Manufacturers
United Enertech
Air Balance
Louvers & Dampers
Mestek, Inc. is a family of over 45 specialty manufacturers providing heating, ventilating, and air conditioning products, as well as metal forming machinery and architectural products. Their diverse portfolio serves various facets of the HVAC equipment and building envelope industries.
Featured Balancing/Regulating Dampers
United Enertech - Remote Control Bowden Cable
United Enertech's Remote Control Bowden Cable System is designed to facilitate precise air balancing in HVAC applications. This system allows for easy adjustment of airflow through ducts via a cable-operated mechanism, ensuring optimal ventilation performance.
Features
Air Balancing
Enables precise regulation of airflow within ducts, ensuring optimal ventilation performance.
Flexible Installation
Suitable for mounting through grilles or diffusers, with options for wall or ceiling installations to accommodate various design requirements.
Simple Operation
Utilizes a push-pull cable system for straightforward manual adjustments, allowing users to fine-tune airflow as needed.
Specifications
Damper Types

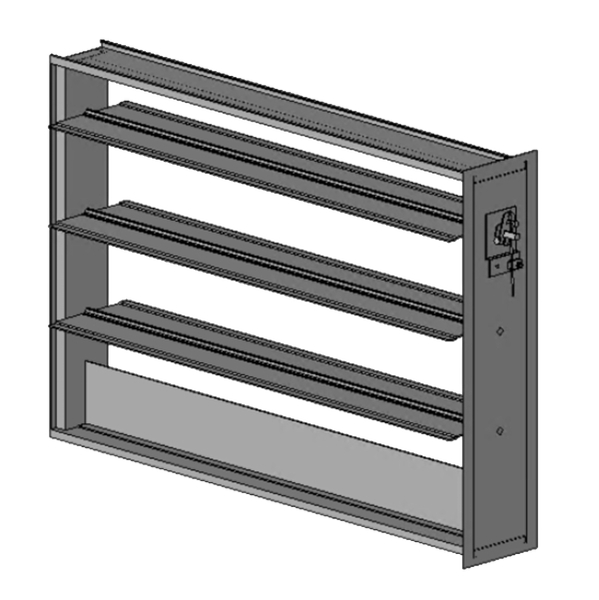

– **Rectangular Dampers:** Models such as BO-100 are designed for duct mounting with simple push-pull adjustments via the Bowden cable. :contentReference[oaicite:4]{index=4}
– **Round Dampers:** Models like BO-RI are suitable for duct mounting and feature simple push-pull adjustments via the Bowden cable. :contentReference[oaicite:5]{index=5}
– **Diffuser/Grille Balancing Dampers:** Models such as BO-RH and BO-110H are developed for air balancing through the face of a diffuser using a looped cable end. :contentReference[oaicite:6]{index=6}
– **High-Efficiency Balance Dampers:** The BO-Hi model features a factory-mounted bellmouth takeoff with simple push-pull adjustments via the Bowden cable. :contentReference[oaicite:7]{index=7}
Materials
Constructed with durable materials suitable for HVAC applications, ensuring longevity and reliable performance.
Operating Mechanism
Features a Bowden cable system that allows for manual push-pull adjustments, providing ease of use and precise control over airflow.
Warranty
Documents
United Enertech - Exhaust Constant Volume Wall Mount
Constant volume exhaust fans for wall-mounted applications, designed for consistent airflow in commercial ventilation systems.
Features
Specifications
Warranty
Documents

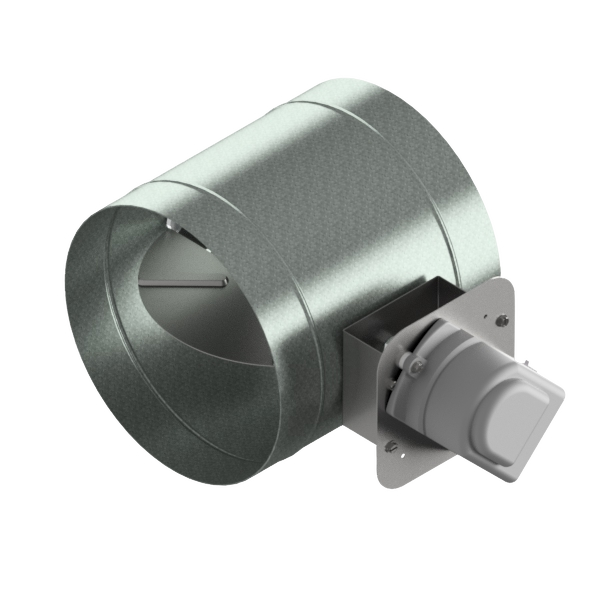

United Enertech - Single Blade Round Power/Balance Damper
Heavy-duty round damper for airflow control in commercial duct systems, featuring a locking quadrant handle for precise balancing.
Features
Robust Construction
14-gauge galvanized steel blade and frame.
Secure Adjustment
Locking hand quadrant maintains set positions.
Specifications
Sizes
6″-36″ diameters.
Pressure Rating
3″ w.g. maximum static pressure.
Warranty
Documents

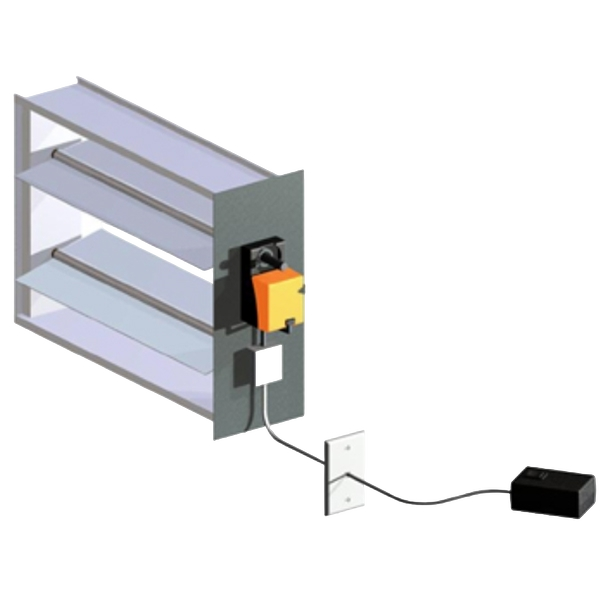

United Enertech - Rectangular Power/Balance Galvanized Steel Damper
Heavy-duty galvanized steel damper for precise airflow control in commercial HVAC systems, suitable for both balancing and powered applications.
Features
Robust Construction
14-gauge frame with 12-gauge blades and stainless steel shafts.
Actuator Options
Manual lever, pneumatic, or electric actuators (0-10V/4-20mA).
Leakage Control
Class I (<4 CFM/sq.ft @ 4" w.g.) with optional neoprene gasketing.
Specifications
Sizes
6″x6″ to 48″x48″ (larger sizes sectional).
Pressure Rating
10″ w.g. maximum operating pressure.
Testing
AMCA 500-D certified for airflow performance.
Warranty
Documents
