Adjustable Louvers
Adjustable Louver Manufacturers
United Enertech
Air Balance
Louvers & Dampers
Mestek, Inc. is a family of over 45 specialty manufacturers providing heating, ventilating, and air conditioning products, as well as metal forming machinery and architectural products. Their diverse portfolio serves various facets of the HVAC equipment and building envelope industries.
Featured Adjustable Louvers

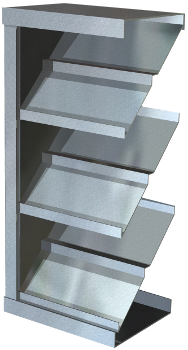

United Enertech - Drainable Adjustable Louver 6" Deep
This 6" deep adjustable louver features drainable blade technology for superior moisture management in harsh environments. Perfect for industrial exhaust or makeup air applications.
Features
Positive Drainage
Integrated water channels prevent moisture accumulation.
Adjustable Control
Manual or motorized blade operation available.
Durable Construction
Heavy-gauge aluminum or galvanized steel options.
Specifications
Depth
6″ profile for enhanced performance.
Applications
Industrial facilities, parking garages, mechanical rooms.
Options
Bird screen, paint finishes, and actuators available.
Warranty
Documents

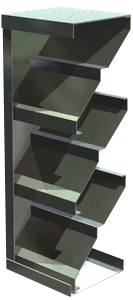

United Enertech - 4" Deep, J style blade, adjustable louver
The SAFL-4 features J-style blades in a 4" deep galvanized steel frame, designed for exterior wall openings requiring adjustable ventilation with weather protection. Its high free area design minimizes airflow resistance while blocking rain intrusion.
Features
Blade Design
J-style blades optimize weather resistance and airflow efficiency.
Adjustability
Manual blade adjustment for precise airflow control.
Construction
Formed steel construction with corrosion-resistant finish.
Specifications
Depth
4″ frame profile.
Applications
Intake/exhaust ventilation in commercial buildings.
Warranty
Documents

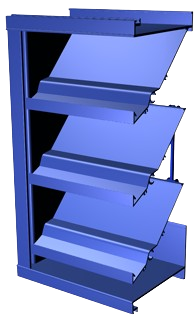

United Enertech - Steel, Adjustable, Drainable 6" Deep Steel Louver
6" deep adjustable louver with drainable blade design for commercial exhaust/intake applications. Features manual blade adjustment and corrosion-resistant construction.
Features
Drainable Design
30° blade angle with weep holes prevents water accumulation.
Adjustable Control
Manual lever adjusts blades from 0-90°.
Specifications
Material
14ga galvanized steel with G90 coating.
Performance
0.11″ w.g. pressure drop at water penetration.
Warranty
Documents

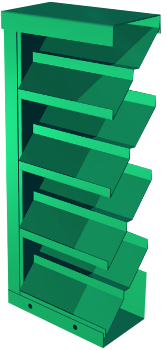

United Enertech - Steel, Adjustable, Drainable 4" Deep Steel Louver
Heavy-duty steel louver combining manual blade adjustability with positive drainage for industrial exhaust/intake applications.
Features
Dual-Function Design
30° drainable blades with 0-90° manual adjustment range.
Corrosion Protection
G90 galvanized steel with optional stainless steel hardware.
Maintenance Access
Removable blade clusters for cleaning.
Specifications
Construction
14ga blades with 12ga frame (20ga optional).
Wind Load
Rated for 50 psf (with 1.5 safety factor).
Leakage
Class II when closed (≤10 CFM/sq.ft @ 4″ w.g.).
Warranty
Documents
